3122 Extractable Dowel Pin, Phosphate Coated ISO 8735A/ DIN 7979

Close Next Previous

3122: Extractable Dowel Pin

CAD Viewer

Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

We're sorry, this item has been discontinued, Please try searching for a different item, or contact us for advice on an alternative.

Product Description

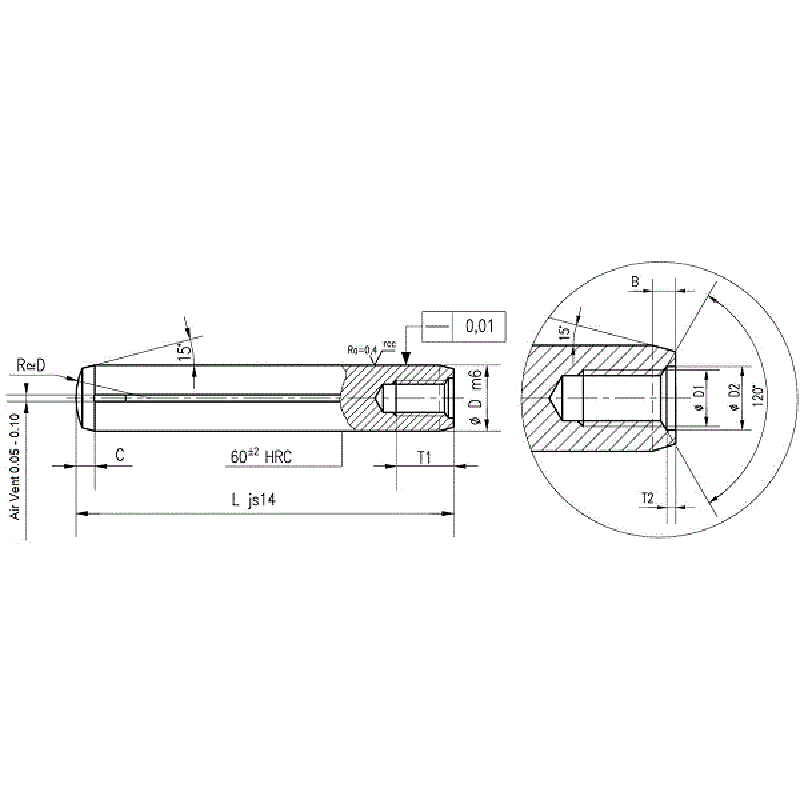

3122 Extractable Dowel Pin, Phosphate Coated ISO 8735A/ DIN 7979

Made to ISO 8735 standards, these extractable dowel pins have an internal thread which is used to aid extraction of the pin after installation. These hardwearing pins are ideal for accurate positioning and locating of parts in press tool, mould making, jigs, fixtures and machinery and also to provide a reference point.

Specification

Nitrided, finished to ISO tolerance m6 with an air vent flap. Also available without flat, on request.
