5726 Guide Pillars Tapered ISO9182 5722 ISO 9182 steel top quality pillars assemblies retained ball cage accurate precise long life hardwearing press manufacturing machinery

Press Tool Standard Parts > Guide Pillars (Pins), Bushes & Cages, ISO, IEM, JIS standards > Premium Guide Pillars, Ball Cages, Bushes & Accessories
< Previous Product Next Product >

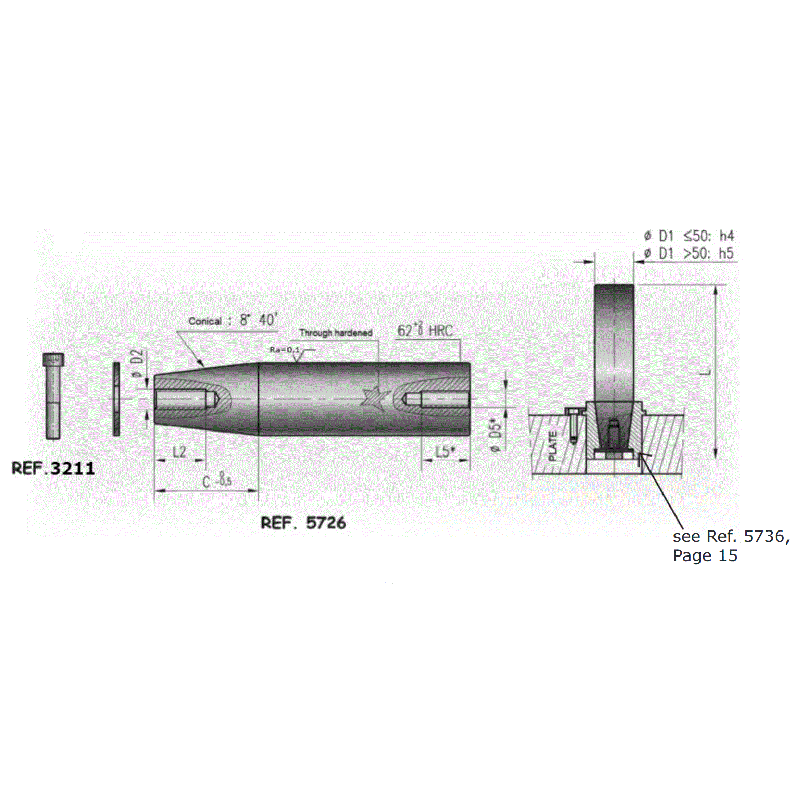

5726 Guide Pillar, Tapered, ISO9182 Standard





Select Values to Buy:

Tech Spec:



5726 Guide Pillar, Tapered, ISO 9182 Standard

These guide pillars or pins are used in press machinery, for accurate, precise manufacturing. Made to ISO 9182 standards, they are top quality steel, and are long life and hardwearing. They are sold as assemblies, including washers and cap screws. Also available with retained ball cage 5750.

Specification

Steel

How to Order

Ref:  5726   D1 = 25   L = 125   C = 45   =>   5726-025-125-045

Select / Deselect Visible Columns
PartCodeD1LCD2L2D5L5Mass

5726-012-100-0231210023M514M5140.1
5726-012-125-0231212523M514M5140.107
5726-012-140-0231214023M514M5140.12
5726-012-160-0231216023M514M5140.13
5726-016-100-0281610028M614M6140.135
5726-016-125-0281612528M614M6140.18
5726-016-140-0281614028M614M6140.195
5726-016-160-0281616028M614M6140.225
5726-016-180-0281618028M614M6140.255
5726-020-125-0382012538M614M8180.27
5726-020-140-0382014038M614M8180.29
5726-020-160-0382016038M614M8180.34
5726-020-180-0382018038M614M8180.39
5726-020-200-0382020038M614M8180.44
5726-025-125-0352512535M818M8180.408
5726-025-125-0452512545M818M8180.393
5726-025-140-0352514035M818M8180.468
5726-025-140-0452514045M818M8180.448
5726-025-160-0352516035M818M8180.542
5726-025-160-0452516045M818M8180.553
5726-025-180-0352518035M818M8180.618
5726-025-180-0452518045M818M8180.598
5726-025-200-0352520035M818M8180.693
5726-025-200-0452520045M818M8180.678
5726-025-224-0352522435M818M8180.75
5726-025-224-0452522445M818M8180.73
5726-025-250-0352525035M818M8180.868
5726-025-250-0452525045M818M8180.848
5726-032-160-0483216048M818M8180.868
5726-032-160-0613216061M818M8180.823
5726-032-180-0483218048M818M8180.988
5726-032-180-0613218061M818M8180.947
5726-032-200-0483220048M818M8181.068
5726-032-200-0613220061M818M8181.073
5726-032-224-0483222448M818M8181.4
5726-032-224-0613222461M818M8181.16
5726-032-250-0483225048M818M8181.423
5726-032-250-0613225061M818M8181.313
5726-032-280-0483228048M818M8181.608
5726-032-280-0613228061M818M8181.568
5726-040-180-0484018048M818M8181.553
5726-040-180-0614018061M818M8181.508
5726-040-180-0784018078M818M8181.508
5726-040-200-0484020048M818M8181.658
5726-040-200-0614020061M818M8181.753
5726-040-200-0784020078M818M8181.623
5726-040-224-0484022448M818M8181.92
5726-040-224-0614022461M818M8181.92
5726-040-224-0784022478M818M8181.92
5726-040-250-0484025048M818M8182.228
5726-040-250-0614025061M818M8182.098
5726-040-250-0784025078M818M8182.113
5726-040-280-0484028048M818M8182.518
5726-040-280-0614028061M818M8182.468
5726-040-280-0784028078M818M8182.403
5726-040-315-0484031548M818M8182.773
5726-040-315-0614031561M818M8182.808
5726-040-315-0784031578M818M8182.733
5726-050-200-0615020061M1025M10252.665
5726-050-200-0785020078M1025M10252.58
5726-050-224-0615022461M1025M10252.8
5726-050-224-0785022478M1025M10252.8
5726-050-250-0615025061M1025M10253.315
5726-050-250-0785025078M1025M10253.32
5726-050-280-0615028061M1025M10253.765
5726-050-280-0785028078M1025M10253.765
5726-050-315-0615031561M1025M10254.405
5726-050-315-0785031578M1025M10254.31
5726-050-355-0615035561M1025M10255.005
5726-050-355-0785035578M1025M10254.905
5726-050-400-0615040061M1025M10255.675
5726-050-400-0785040078M1025M10255.565
5726-063-250-0776325077M1228M10255.3
5726-063-250-0976325097M1228M10255.145
5726-063-280-0776328077M1228M10256.45
5726-063-280-0976328097M1228M10255.83
5726-063-315-0776331577M1228M10256.885
5726-063-315-0976331597M1228M10256.665
5726-063-355-0776335577M1228M10257.84
5726-063-355-0976335597M1228M10257.66
5726-063-400-0776340077M1228M10258.905
5726-063-400-0976340097M1228M10258.715
5726-063-450-0776345077M1228M102510.11
5726-063-450-0976345097M1228M10259.92
5726-063-500-0776350077M1228M102511.285
5726-063-500-0976350097M1228M102511.035
5726-080-315-0918031591M1636M122510.826
5726-080-355-0918035591M1636M122512.376
5726-080-400-0918040091M1636M122514.1
5726-080-450-0918045091M1636M122515.65
5726-080-500-0918050091M1636M122517.2
