GN6311.3 Foot Plate, Steel, with or without Plastic Cap

images/300/GN6311.3_Foot_plate_sketch_H.png

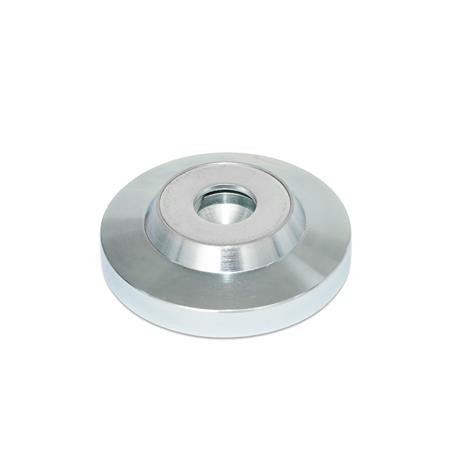

Type OS - without plastic cap

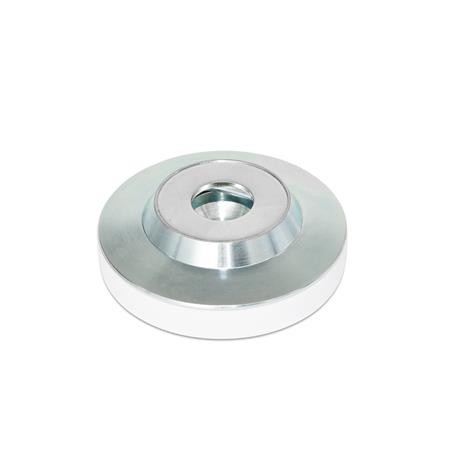

Type KS - with plastic cap, gliding

Type KR - with plastic cap, non-gliding

Select Values to Buy:

Tech Spec:



GN6311.3 Foot Plate, Steel, with or without Plastic Cap

Foot plates GN6311.3 are used together with screws with pivots (for example, grub screws DIN6332, and tommy screws DIN6304 or DIN6306).

Due to the special shape of the immovable retaining ring, the foot plate is easily plugged onto and removed from, the pivot.

Specification

Steel - zinc plated, blue passivated

Circlip - Spring steel wire, zinc plated, blue passivated

Plastic caps - Type KS , Technopolymer (Polyacetal POM), white (natural colour) RAL 9001. Type KR - Elastomer (TPE), 78 Shore A ≈, black.

RoHS compliant

Select / Deselect Visible Columns
PartCoded1hd2esTypeMass

GN6311.3-50-11,5-OS5011.59.22.51.7OS0.133
GN6311.3-50-11,5-KS5011.59.22.51.7KS0.126
GN6311.3-50-11,5-KR5011.59.22.51.7KR0.115
GN6311.3-50-13,5-OS5013.512.541.7OS0.14
GN6311.3-50-13,5-KS5013.512.541.7KS0.133
GN6311.3-50-13,5-KR5013.512.541.7KR0.122
GN6311.3-60-13,5-OS6013.512.541.7OS0.227
GN6311.3-60-13,5-KS6013.512.541.7KS0.217
GN6311.3-60-13,5-KR6013.512.541.7KR0.197
GN6311.3-60-15,5-OS6015.516.54.31.7OS0.237
GN6311.3-60-15,5-KS6015.516.54.31.7KS0.227
GN6311.3-60-15,5-KR6015.516.54.31.7KR0.207
