DIN6306 Tommy Screw, Movable Bar

CloseNextPrevious



CloseNextPrevious

DIN6306: Tommy Screw
Type: D - without Thrust Pad



CloseNextPrevious

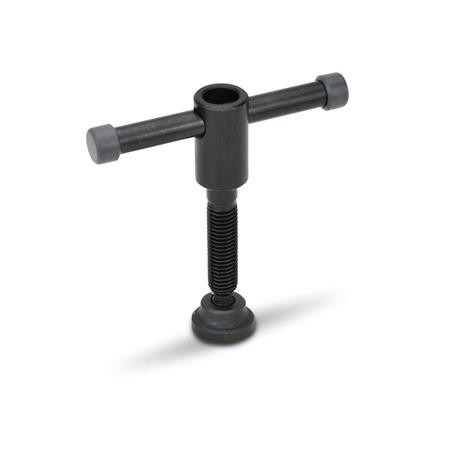

DIN6306: Tommy Screw
Type: E - with Thrust Pad DIN6311



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type D - Without Thrust Pad

Type E - With Thrust Pad DIN6311

CAD Viewer Technical Data

Product Description

DIN6306 Tommy Screw with Movable Bar.

These DIN6306 tommy screws allow easy adjustment of the screw to the desired torque. The movable bar is held in any position by the pressure spring.

The end caps are pressed onto the bar and thus limit the bar travel. They can also be supplied separately should the bar be plated first. The official DIN standard sheets provide steel rings at this point.

The thrust point of these screws is designed to be used with or without a thrust pad for clamping. The snap ring is a simple and quick method to connect the thrust pad to the tommy screw.

Instead of thrust pad DIN6311, thrust pad GN6311.1 can be used. If so, the tommy screw and the thrust pad have to be ordered separately.

An optional foot plate is also available, GN6311.3.
