5741 Retainer Ball Bearing Cage, NF E 63-124 Standard

Select Values to Buy:

Tech Spec:



5741 Retainer Ball Bearing Cage, NF E 63-124 Standard

These top quality ball cages are a precision guiding element which has been manufactured to NF E 63-124 standards. The ball bearings are arranged in a spiral pattern, which reduces wear and tear, extending the life of the pillar.

Suitable for use with our press fit guide bush 5732 and demountable guide bushes 5737 (short spigot) and 5738 (long spigot).

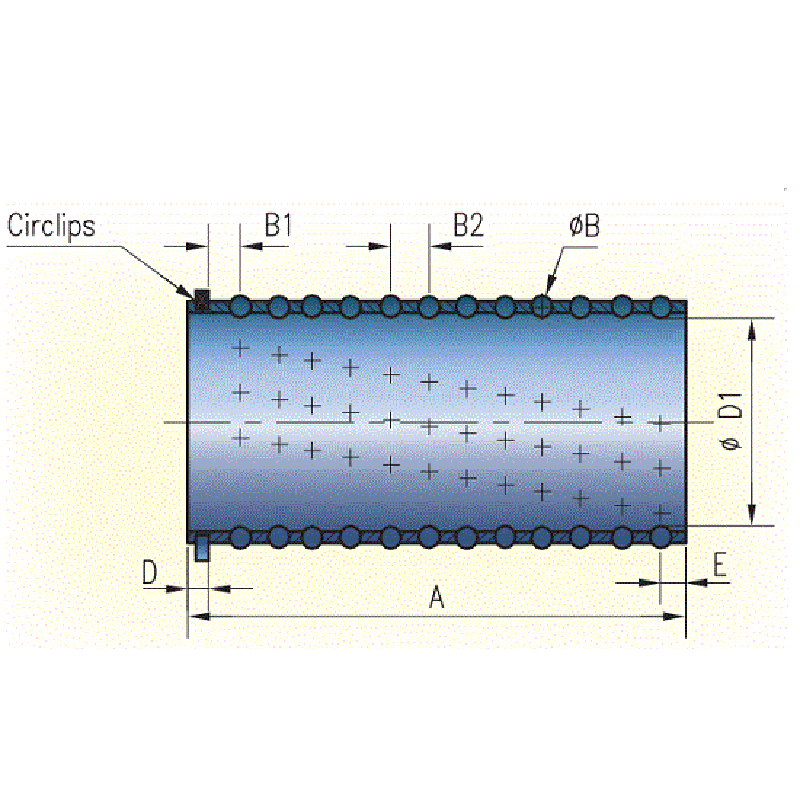

Specification

Steel

N denotes number of rows of ball bearings.

Select / Deselect Visible Columns
PartCodeD1ABB1B2DENMass

5741-012-02012202332.6350.017
5741-012-02312232332.6360.012
5741-012-03812382332.63110.021
5741-012-04412442332.63130.024
5741-012-05312532332.63160.028
5741-016-02016202332.8350.014
5741-016-02616262332.8370.019
5741-016-03516352332.83100.024
5741-016-03816382332.83110.027
5741-016-04416442332.83130.033
5741-016-05316532332.83160.037
5741-016-05916592332.83180.04
5741-016-06216622332.83190.043
5741-016-06516652332.83200.044
5741-016-07716772332.83240.052
5741-020-02420242.543.62.83.350.028
5741-020-02820282.543.62.83.360.032
5741-020-03120312.543.62.83.370.036
5741-020-03520352.543.62.83.380.04
5741-020-03920392.543.62.83.390.117
5741-020-04220422.543.62.83.3100.047
5741-020-04620462.543.62.83.3110.051
5741-020-04920492.543.62.83.3120.057
5741-020-05320532.543.62.83.3130.06
5741-020-05620562.543.62.83.3140.062
5741-020-06420642.543.62.83.3160.071
5741-020-06720672.543.62.83.3170.074
5741-020-07120712.543.62.83.3180.078
5741-020-07820782.543.62.83.3200.085
5741-020-08520852.543.62.83.3220.093
5741-020-08920892.543.62.83.3230.017
5741-020-09620962.543.62.83.3250.106
5741-025-02625263.554.73.63.940.058
5741-025-03125313.554.73.63.950.068
5741-025-03625363.554.73.63.960.075
5741-025-04025403.554.73.63.970.084
5741-025-04525453.554.73.63.980.095
5741-025-05025503.554.73.63.990.103
5741-025-05425543.554.73.63.9100.114
5741-025-05925593.554.73.63.9110.122
5741-025-06825683.554.73.63.9130.142
5741-025-07825783.554.73.63.9150.16
5741-025-08725873.554.73.63.9170.18
5741-025-09725973.554.73.63.9190.017
5741-025-101251013.554.73.63.9200.207
5741-025-106251063.554.73.63.9210.214
5741-032-0313231465.63.94.640.099
5741-032-0363236465.63.94.650.115
5741-032-0423242465.63.94.660.132
5741-032-0483248465.63.94.670.149
5741-032-0593259465.63.94.690.181
5741-032-0703270465.63.94.6110.215
5741-032-0763276465.63.94.6120.233
5741-032-0813281465.63.94.6130.25
5741-032-0873287465.63.94.6140.264
5741-032-0923292465.63.94.6150.288
5741-032-10432104465.63.94.6170.313
5741-032-11532115465.63.94.6190.346
5741-032-12032120465.63.94.6200.375
5741-032-13232132465.63.94.6220.403
5741-040-0434043576.83.95.350.2
5741-040-0504050576.83.95.360.229
5741-040-0574057576.83.95.370.258
5741-040-0704070576.83.95.390.315
5741-040-0844084576.83.95.3110.373
5741-040-0914091576.83.95.3120.407
5741-040-0974097576.83.95.3130.437
5741-040-10440104576.83.95.3140.463
5741-040-11840118576.83.95.3160.533
5741-040-13140131576.83.95.3180.591
5741-040-13840138576.83.95.3190.613
5741-040-15940159576.83.95.3220.696
5741-040-16540165576.83.95.3230.73
5741-050-05150516.588.34.2650.395
5741-050-05950596.588.34.2660.461
5741-050-09250926.588.34.26100.711
5741-050-109501096.588.34.26120.809
5741-050-126501266.588.34.26140.953
5741-050-134501346.588.34.26151.007
5741-050-151501516.588.34.26171.117
5741-050-167501676.588.34.26191.242
5741-063-12763127688.35.26141.069
5741-063-15263152688.35.26171.263
5741-063-16863168688.35.26191.431
5741-063-19363193688.35.26221.617
5741-080-15480154688.36.27171.652
5741-080-18780187688.36.27211.999
5741-080-20380203688.36.27232.171
5741-080-23780237688.36.27272.534
5741-010-0400.023
