GN115 Latch, Black Plastic Coated, Not Lockable

images/300/GN115_-Latch-operation-with-key-locating-ring-black-sketch_W.png

CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type DK - Operation with triangular spindle DK7

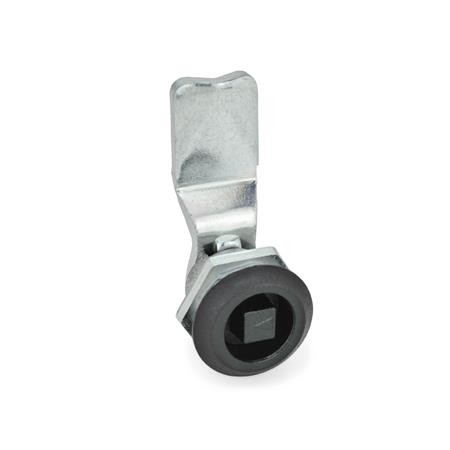

Type VK7 - Operation with square spindle A/F7

Type VK8 - Operation with square spindle A/F8

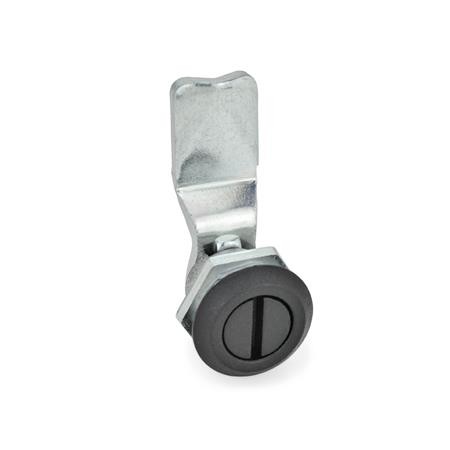

Type SCH - Operation with slot

Type VDE - Operation with double bit

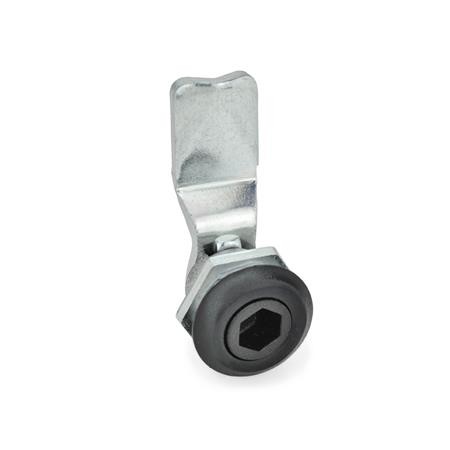

Type SK10 - Operation with hexagon A/F10

CAD Viewer Technical Data

Product Description

GN115 Latch, Black Plastic Coated, Not Lockable

Latches GN 115 are economically priced. They offer a straightforward locking action rather than a locking and clamping action. They latch using a turning operation, limited to 90°, which moves the locking behind the door frame. The bevels of the latch ease the closing of the door.

The choice of 22 differently shaped catch plates gives a range A of 4 to 50 mm.

The lockings are included loose.

Specification

Lock housing - Zinc die casting.

Locating ring - plastic coated black, RAL 9005, textured finish SW

All other parts - Steel zinc plated, blue passivated

Key - Nickel silver with plastic hand piece

Star knob / wrench / T-Handle - Plastic (Polyamide PA), black

Accessory

Socket keys GN119.2
