Type AS - with external hexagon.

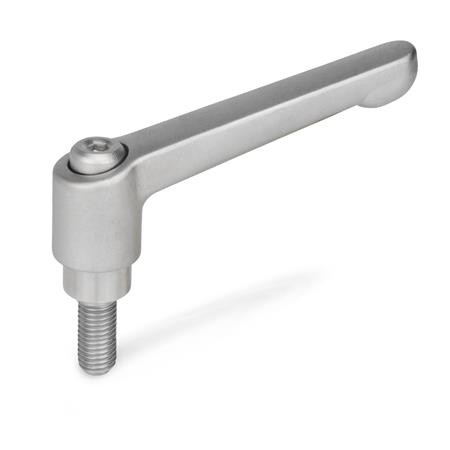

Type IS - with internal hexalobular (Torx®)
GN300.5 Adjustable Hand Lever, All Stainless Steel, Threaded Stud
These adjustable hand levers, GN 300.5, with fully stainless steel handle, are ideal for applications where the part is exposed to challenging conditions which can cause a corrosion risk, or where stainless steel materials are preferred such as in food processing, chemical or pharmaceutical industries.
Retaining screws with hexagon head (Type AS) prevent water from accumulating.
These adjustable hand levers have proved to be ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged. Pulling the lever disengages the serrations and allows it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
These stainless steel adjustable hand levers have a matt finish - for a polished finish, please see GN300.6.
Handle - Precision casting, Stainless Steel AISI CF-8, matt shot-blasted.
Threaded stud - Stainless Steel AISI 303
Retaining screw - Stainless Steel AISI 303
Spring - Stainless Steel AISI 301
