GN300 Adjustable Hand Lever, Threaded Steel Bush
Adjustable hand levers, GN 300, are designed to be comfortable in use and have a modern appearance.
These levers are ideal whenever parts have to be clamped in a confined space or in a particular lever position. The centre insert is connected to the lever via serrations which can easily be disengaged.
Pulling the lever disengages the serrations and allows it to be swivelled to the ideal clamping position. On releasing the lever the serrations automatically re-engage.
Handle - Zinc die casting, plastic coated.

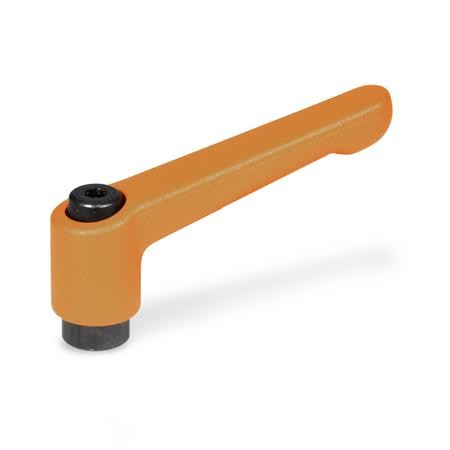

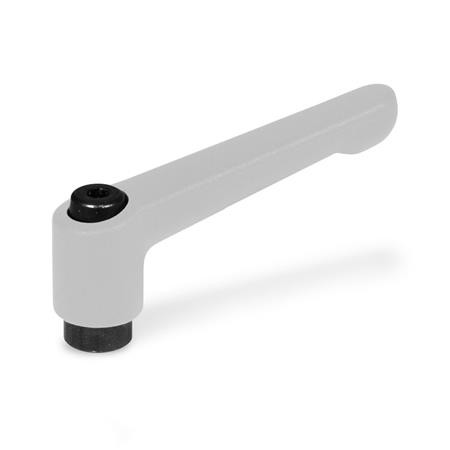

Plastic coated: Black - SW RAL 9005, textured finish. Black - SZ RAL 9011, silk finish. Orange - OS RAL 2004, textured finish. Red - RAL 3000, smooth finish RT- available on request. Red - RAL 3000, textured finish RS. Silver - SR RAL 9006, textured finish. Grey - GR, available whilst stocks last. Green - GN, available whilst stocks last. Blue- BL, available whilst stocks last.

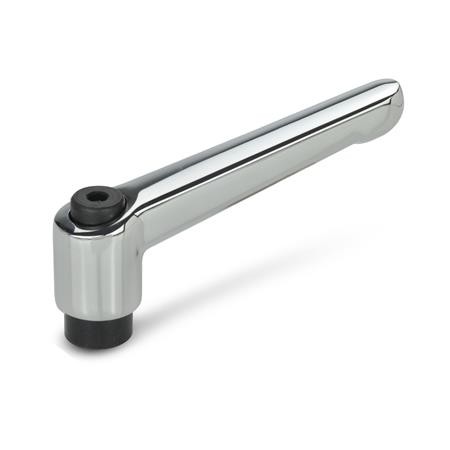

Chrome-plated - CR
Uncoated RH, slide ground.
Threaded bush and retaining screw - steel, blackened.
