GN603 (ERX.P) Adjustable Hand Lever, Button Release
CloseNextPreviousGN603: Adjustable Hand Lever

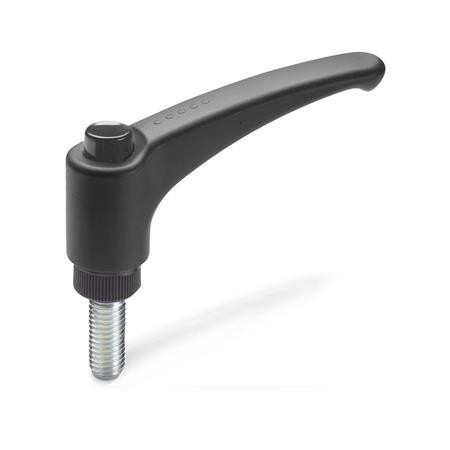

Colour Releasing Button: DSG - Black-Grey
Choose your Part
Please select desired options to reveal part number, price and availability
Product Description
GN603 (ERX) Adjustable Hand Lever, with Release Button
These hand levers, GN 603, have an elegant design and an ergonomic shape. They are heat resistant and are ideal whenever parts have to be clamped in a confined space or in a particular lever position.
The gently arched handle with a reinforced lever end gives the operator a good grip and the press button which re-adjusts the lever position in either direction also acts as a thumb rest. The adjustment which is via a serrations which can easily be disengaged. The press button is available in a range of colours. Its use is limited to applications where dismantling of the lever for installation is not required.
Specification
- Handle - Plastic, glass fibre reinforced, temperature resistant up to 130°C, black-grey, matt, similar to RAL 7021.

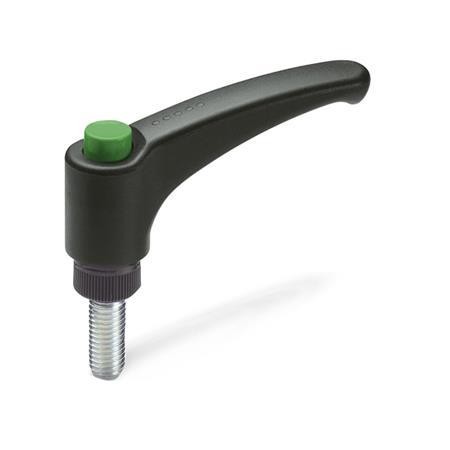

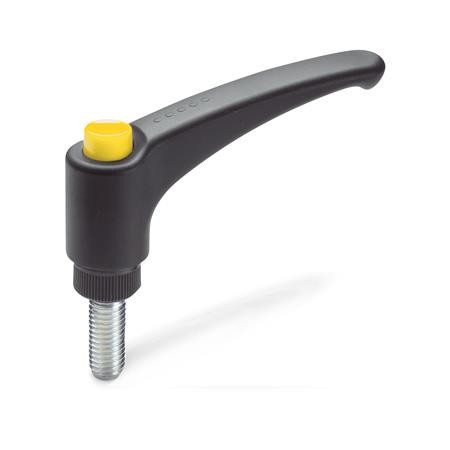

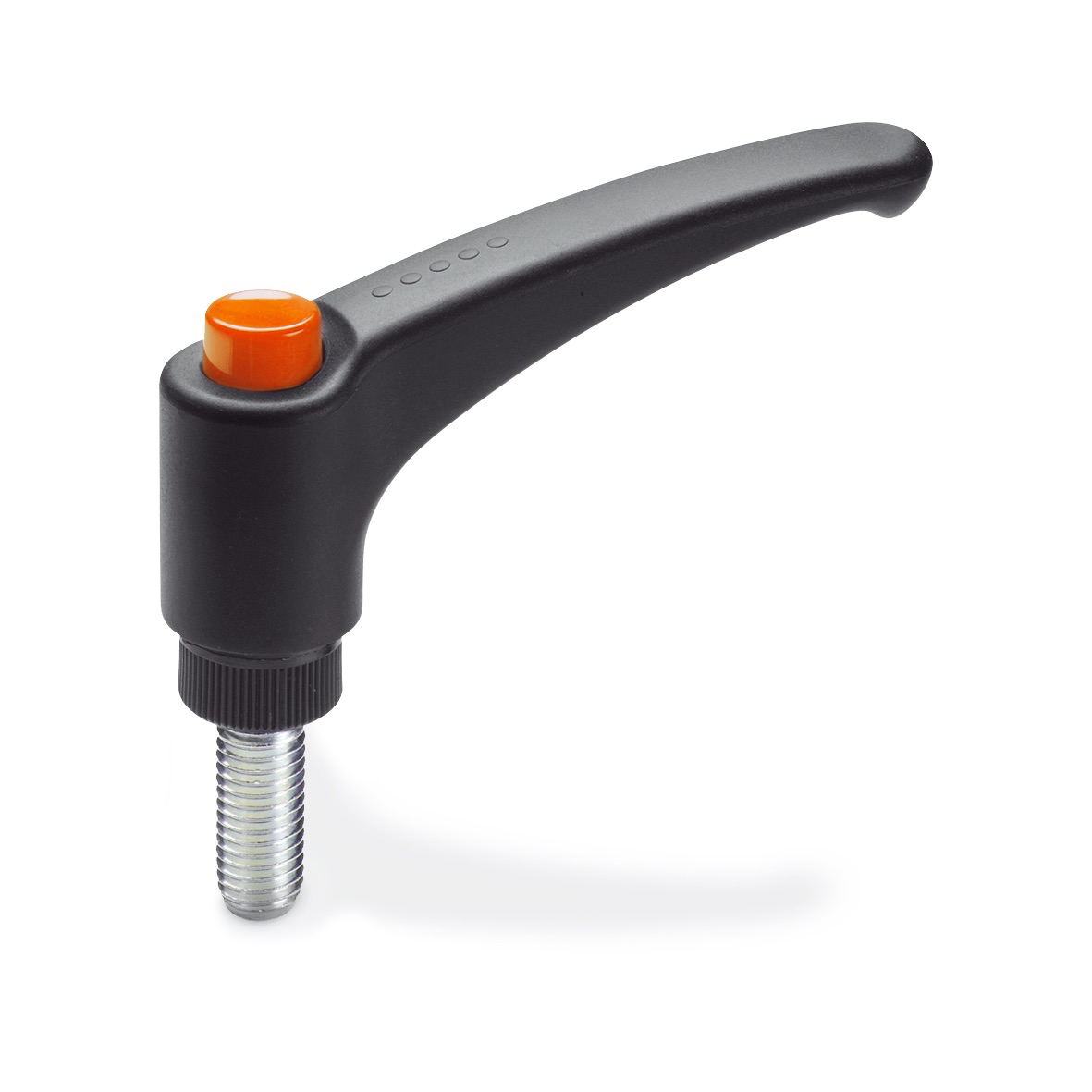

- Button, shiny finish. Colour - Black-grey, RAL 7021, DSG. Orange, RAL 2004 DOR. Grey, RAL 7035 DGR. Green, RAL 6107 DGN. Yellow, RAL 1021 DGB. Blue, RAL 5024 DBL. Red, RAL 3000 DRT.
- Threaded stud - Steel, zinc plated, blue passivated.
CAD Viewer
Technical Data
