Product Description

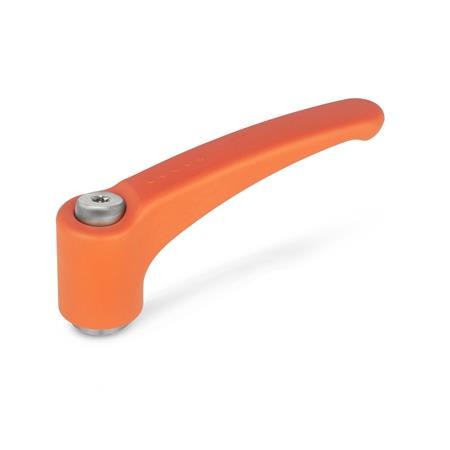

GN604.1 (ERZ.SST) Adjustable Hand Lever, Female.
These adjustable hand levers have a well designed shape, the gently arched handle with a reinforced end giving a firm but comfortable grip. They are heat resistant and are ideal whenever parts have to be clamped in a confined space or in a particular lever position. Their plastic and stainless steel construction makes them perfect for clean room environments.
Pulling the lever disengages the serration and allows it to be turned in either direction to reach the ideal position. On releasing the handle the serrations re-engage automatically.
Specification
Handle - Plastic, glass fibre reinforced, temperature resistant up to 130°C, Black-grey, RAL 7021 SG, Orange, RAL 2004 OR.
Serrated ring - Zinc die casting.
Threaded bush and retaining screw - Stainless Steel NI, AISI 303
CAD Viewer
Technical Data
