GN6337.3 Adjustable Clamping Levers Push Disengage Female confined space particular position effective choice GN 6337.3 6337-3 GN6337-3 GN 6337-3

Standard Parts for Clamping & Operating & Machine Fixtures > Adjustable Hand Levers, Clamping Levers & Tension Levers > Adjustable Handle Levers, Tension Levers
< Previous Product Next Product >

GN6337.3 Adjustable Clamping Lever, Push Disengage, Female

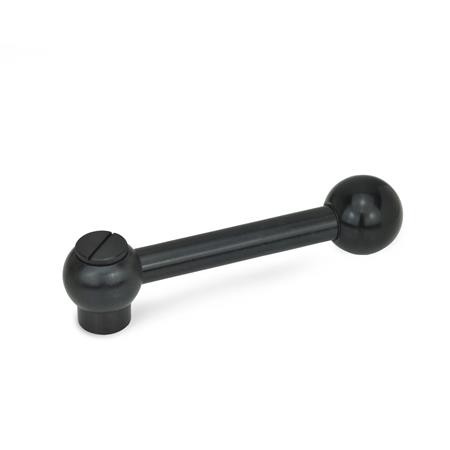

Type M - straight lever with threaded bore.

Type N - angled lever with threaded bore.

Select Values to Buy:

Tech Spec:



GN 6337.3 Adjustable Clamping Lever, Push Disengage, Female

These adjustable clamping levers are ideal whenever parts have to be clamped in a confined space or a particular lever position is required. The insert is connected with the lever via serrations in the ball bore which can be disengaged.

Pushing the lever down disengages the serrations and the lever can be swivelled to the ideal clamping position. Engagement is achieved by releasing the lever.

Should a rotation of 360° not be possible, the insert can be lightly screwed in (after the lever is disengaged) via a slot in the knurled screw.

Specification

Steel, Tensile strength 500 N/mm2, blackened.

Ball Knobs DIN319

Also available in male variant, with threaded stud GN6337.3

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2d3d4d6h1h2h3l2l3tTypeMass

GN6337.3-20-M6-MST20M613.5208.525846747012M0.061
GN6337.3-20-M6-NST20M613.5208.525846747012N 0.061
GN6337.3-20-M8-MST20M813.5208.525846747012M0.058
GN6337.3-20-M8-NST20M813.5208.525846747012N 0.04
GN6337.3-25-M8-MST25M816251129858938715M0.114
GN6337.3-25-M8-NST25M816251129858938715N 0.114
GN6337.3-25-M10-MST25M1016251129858938715M0.111
GN6337.3-25-M10-NST25M1016251129858938715N 0.111
GN6337.3-28-M10-MST28M1019301333.510.570.511610918M0.189
GN6337.3-28-M10-NST28M1019301333.510.570.511610918N 0.189
GN6337.3-28-M12-MST28M1219301333.510.570.511610918M0.183
GN6337.3-28-M12-NST28M1219301333.510.570.511610918N 0.17
GN6337.3-34-M12-N0.32
GN6337.3-34-M16-M0.32
GN6337.3-34-M16-N0.32
GN6337.3-34-M12-M0.32
