GN306 Adjustable Hand Levers, Zinc Die Casting, with External Thread, Stainless Steel Insert, with Special Tip

Choose your Part

Please select desired options to reveal part number, price and availability

Options

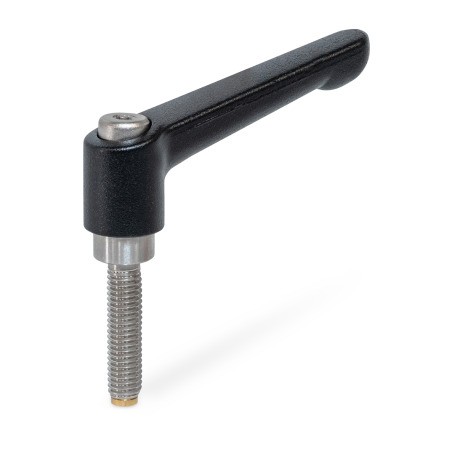

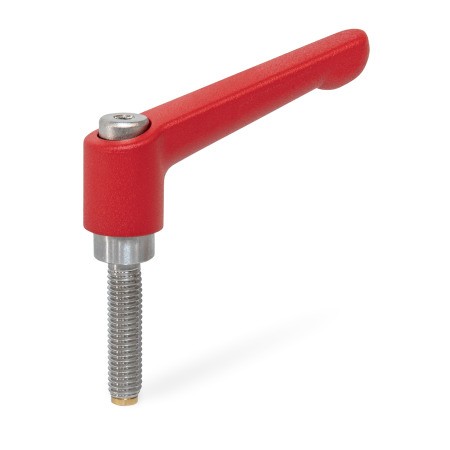

Type MSN - Brass pivot

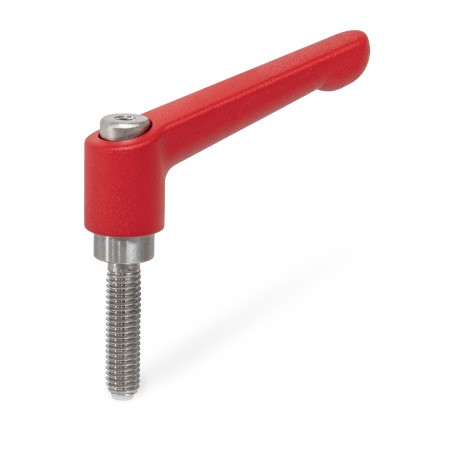

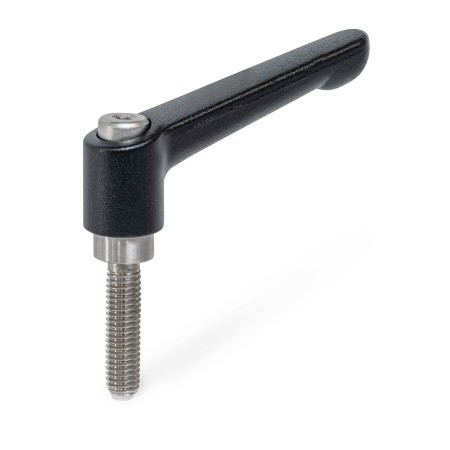

Type KUN - Plastic pivot

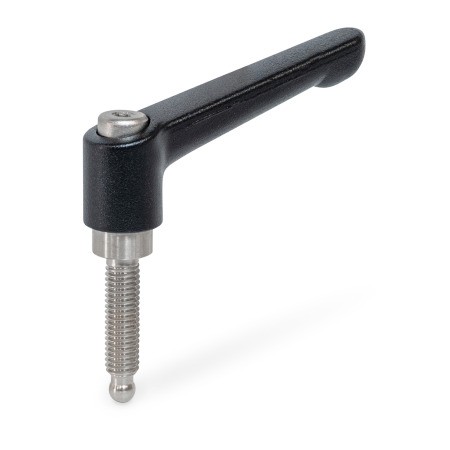

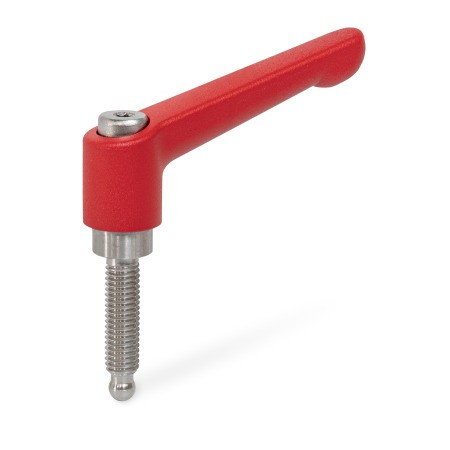

Type ZKN - Spherical tip

Type KDN - Spherical tip with thrust pad POM

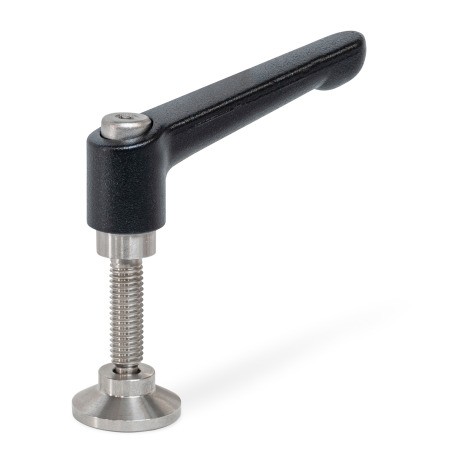

Type NDN - Spherical tip with thrust pad stainless steel

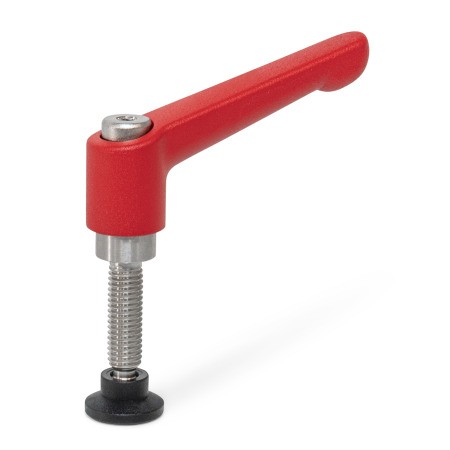

Type RDN - Spherical tip with thrust pad NBR

Product Description

GN306 Adjustable Hand Levers, Zinc Die Casting, with External Thread, Stainless Steel Insert, with Special Tip

Adjustable hand levers GN 306 are used in devices for tool-free clamping, pressing or fixation. To achieve a convenient clamping position, the handle can be lifted by the dimension h₄ and then swiveled. Upon releasing, it snaps back into the serration under spring pressure.

The tip on types MSN / KUN helps prevent pressure marks or damage to the clamped workpiece.

The thrust pad on types KDN / RDN enlarges the contact surface to protect surfaces from damage. In combination with the spherical end, the thrust pad forms a ball joint that adapts to uneven clamping surfaces. It also prevents the rotational movement from being transferred to the clamping surface during clamping.

The rubber coating on type RDN also prevents slipping, provides a dampening effect and reduces noise. In this version, the disk is encased in vulcanized rubber to ensure high load capacity and dimensional stability.

The thrust pads are removable and are supplied unattached.

Specification

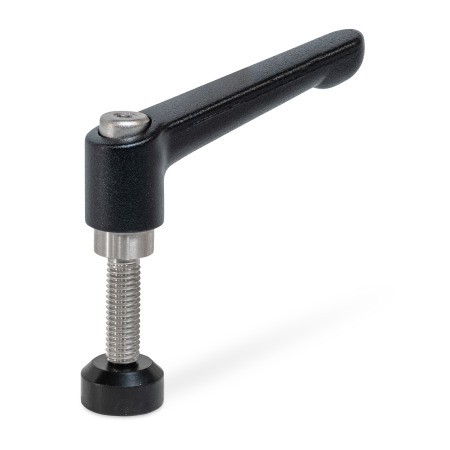

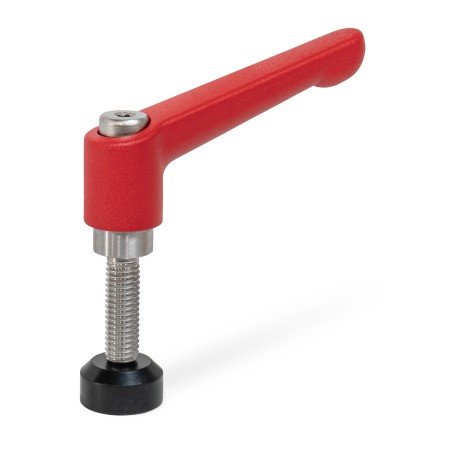

• Handle - zinc die casting, powder coated. Black, RAL 9005, textured finish B. Red, RAL 3000, textured finish R
• Insert / Retaining screw - stainless steel AISI 303
• Thrust point
• Brass for type MSN
• Plastic, Polyacetal (POM) for type KUN
• Thrust pad - Plastic, polyacetal (POM) for type KDN, operating temperature up to 80° C, black, matte finish
• Stainless steel AISI 303 for type NDN, o-ring fluorine rubber (FKM), operating temperature up to 200° C
• Acrylonitrile butadiene rubber (NBR) for type RDN, hardness 85 ±5 Shore A, operating temperature up to 120° C, black, matte finish, disk stainless steel AISI 304

On Request

Handle in other colours.

Handle in stainless steel.
