NEW GN7336.5 Knurled Knob, Threaded Stud

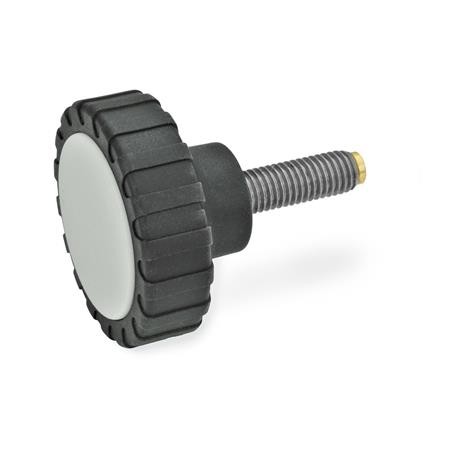

Type MS - Brass Pivot

Type KU - Plastic Pivot, (Polyacetal POM)

Type ZK - Spherical Pivot

Select Values to Buy:

Tech Spec:



GN 7336.5 Knurled Knob with Threaded Stud.

These knurled knobs are ideal when pressure dents or damage must be avoided.

The ZK type feature a spherical pivot whose d6 is smaller than the core of the thread. This version is suitable for holding GN631 /GN631.5 thrust pads, which must be ordered separately.

They have an attractive design in combination with a closed shape (no recess on the underside of the handles).

Specification

Plastic - Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 130 C, matt black.

Threaded Stud - Stainless Steel AISI 304

Cover Cap - light grey, matt.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2l1d3d4d5d6h1h2l2l3l4TypeMass

GN7336.5-34-M6-15-MSKU34M6151643.54.52110.511.35.1MS0.016
GN7336.5-34-M6-15-KUKU34M6151643.54.52110.511.35.1KU0.016
GN7336.5-34-M6-15-ZKKU34M6151643.54.52110.511.35.1ZK0.016
GN7336.5-34-M6-20-MSKU34M6201643.54.52110.511.35.1MS0.017
GN7336.5-34-M6-20-KUKU34M6201643.54.52110.511.35.1KU0.017
GN7336.5-34-M6-20-ZKKU34M6201643.54.52110.511.35.1ZK0.017
GN7336.5-34-M6-25-MSKU34M6251643.54.52110.511.35.1MS0.018
GN7336.5-34-M6-25-KUKU34M6251643.54.52110.511.35.1KU0.018
GN7336.5-34-M6-25-ZKKU34M6251643.54.52110.511.35.1ZK0.018
GN7336.5-34-M6-30-MSKU34M6301643.54.52110.511.35.1MS0.019
GN7336.5-34-M6-30-KUKU34M6301643.54.52110.511.35.1KU0.019
GN7336.5-34-M6-30-ZKKU34M6301643.54.52110.511.35.1ZK0.019
GN7336.5-42-M8-20-MSKU42M82019656.126131.51.66.2MS0.03
GN7336.5-42-M8-20-KUKU42M82019656.126131.51.66.2KU0.03
GN7336.5-42-M8-20-ZKKU42M82019656.126131.51.66.2ZK0.029
GN7336.5-42-M8-25-MSKU42M82519656.126131.51.66.2MS0.032
GN7336.5-42-M8-25-KUKU42M82519656.126131.51.66.2KU0.032
GN7336.5-42-M8-25-ZKKU42M82519656.126131.51.66.2ZK0.031
GN7336.5-42-M8-30-MSKU42M83019656.126131.51.66.2MS0.034
GN7336.5-42-M8-30-KUKU42M83019656.126131.51.66.2KU0.033
GN7336.5-42-M8-30-ZKKU42M83019656.126131.51.66.2ZK0.032
GN7336.5-42-M8-40-MSKU42M84019656.126131.51.66.2MS0.037
GN7336.5-42-M8-40-KUKU42M84019656.126131.51.66.2KU0.036
GN7336.5-42-M8-40-ZKKU42M84019656.126131.51.66.2ZK0.036
GN7336.5-53-M10-25-MSKU53M10252486.57.8321621.97.3MS0.058
GN7336.5-53-M10-25-KUKU53M10252486.57.8321621.97.3KU0.057
GN7336.5-53-M10-25-ZKKU53M10252486.57.8321621.97.3ZK0.058
GN7336.5-53-M10-30-MSKU53M10302486.57.8321621.97.3MS0.061
GN7336.5-53-M10-30-KUKU53M10302486.57.8321621.97.3KU0.059
GN7336.5-53-M10-30-ZKKU53M10302486.57.8321621.97.3ZK0.06
GN7336.5-53-M10-40-MSKU53M10402486.57.8321621.97.3MS0.064
GN7336.5-53-M10-40-KUKU53M10402486.57.8321621.97.3KU0.064
GN7336.5-53-M10-40-ZKKU53M10402486.57.8321621.97.3ZK0.066
GN7336.5-53-M10-50-MSKU53M10502486.57.8321621.97.3MS0.07
GN7336.5-53-M10-50-KUKU53M10502486.57.8321621.97.3KU0.069
GN7336.5-53-M10-50-ZKKU53M10502486.57.8321621.97.3ZK0.071
