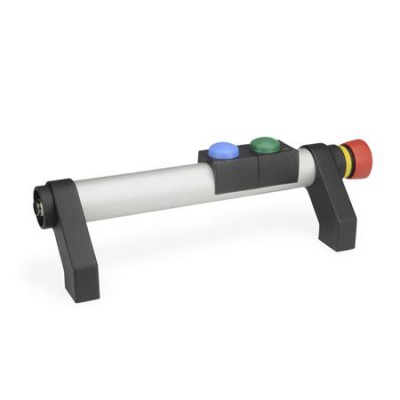

GN332 Angled Tubular Handle With Power Switching

CloseNextPrevious



CloseNextPrevious

GN332: Tubular Handle - Finish: SW
Type: T2 - Id no.: 2 - Door opening: R



CloseNextPrevious

GN332: Tubular Handle - Finish: SW
Type: T2 - Id no.: 2 - Door opening: L



CloseNextPrevious

GN332: Tubular Handle - Finish: SW
Type: T2 - Id no.: 1 - Door opening: R



CloseNextPrevious

GN332: Tubular Handle - Finish: SW
Type: T2 - Id no.: 1 - Door opening: L



CloseNextPrevious

GN332: Tubular Handle - Finish: SW
Type: T1 - Id no.: 2 - Door opening: R



CloseNextPrevious

GN332: Tubular Handle - Finish: SW
Type: T1 - Id no.: 2 - Door opening: L



CloseNextPrevious

GN332: Tubular Handle - Finish: SW
Type: T1 - Id no.: 1 - Door opening: R



CloseNextPrevious

GN332: Tubular Handle - Finish: SW
Type: T1 - Id no.: 1 - Door opening: L



CloseNextPrevious

GN332: Tubular Handle - Finish: SW
Type: T0 - Id. no.: 2 - Door opening: R



CloseNextPrevious

GN332: Tubular Handle - Finish: SW
Type: T0 - Id no.: 2 - Door opening: L



CloseNextPrevious

GN332: Tubular Handle - Finish: EL
Type: T2 - Id no.: 2 - Door opening: R



CloseNextPrevious

GN332: Tubular Handle - Finish: EL
Type: T2 - Id no.: 2 - Door opening: L



CloseNextPrevious

GN332: Tubular Handle - Finish: EL
Type: T2 - Id no.: 1 - Door opening: R



CloseNextPrevious

GN332: Tubular Handle - Finish: EL
Type: T2 - Id no.: 1 - Door opening: L



CloseNextPrevious

GN332: Tubular Handle - Finish: EL
Type:T1 - Id no.: 2 - Door opening: L



CloseNextPrevious

GN332: Tubular Handle - Finish: EL
Type: T1 - Id no.: 1 - Door opening: R



CloseNextPrevious

GN332: Tubular Handle - Finish: EL
Type: T0 - Id no.: 2 - Door opening: R



CloseNextPrevious

GN332: Tubular Handle - Finish: EL
Type: T0 - Id no.: 2 - Door opening: L



CloseNextPrevious

GN332: Tubular Handle- Finish: EL
Type: T1 - Id no.: 2 - Door opening: R



CloseNextPrevious

GN332: Tubular Handle - Finish: EL
Type: T1 - Id no.: 1 - Door opening: L



CAD Viewer Technical Data

Series Selector

Options

Type T0 - Without Button

Type T1 - With One Button

Type T2 - With Two Buttons

Identification no. 1 - Without Emergency Stop

Identification no. 2 - With Emergency Stop

Door Opening L - Handle Location, Hinged from the right

Door Opening R - Handle Location, Hinged from the left

CAD Viewer Technical Data

Product Description

GN332 Angled Tubular Handle With Power Switching Function

These tubular handles with power switching function are suitable for unlocking safety tumblers in rotating, detachable or side-sliding safety devices which must be closed for safety reasons.

By integrating functions such as emergency stop, start, release, reset and LED status display, this tubular handle allows the machine to be monitored and operated directly at the door or gate.

They save mounting and installation work, are attractively ergonomincally designed: the switching and operating functions are located exactly where they are needed.

Specification

Tube diameter 30 x 1,5, Aluminium AL, plastic coated, black SW, RAL 9005, textured finish.

Anodized EL, natural colour.

Handle shanks - Zinc die casting, plastic coated, black SW RAL 9005, textured finish.

Cover caps plastic, (for use without emergency stop), light grey.

Application Example

As you can see in the example image, this type of handle is well suited to multi-function operations. Here the handle is being used on a deburring. machine. The handle shown is the one button variant, however as another button and an emergency stop function could be added, it is easy to see that this handle combines several functions in one.
