GN427 Cabinet U Shape Handle, Aluminium

Select Values to Buy:

GN 427 Cabinet U Shape Handle, Aluminium

These cabinet U handles are produced from profiled aluminum extrusions. They are simple and modern looking and are an ever popular choice.

The manufacturing process (bending) allows the production of special lengths in relatively small quantities.

Specification

Aluminium

Plastic coated, black, RAL 9005, textured finish, SW. Silver, RAL 9006, textured finish, SR. Anodized, natural colour, EL.

RoHS compliant

PartCode	b	l	Finish	a	h	r	Material	Mass

GN427-12-55-SW	12	55	SW	8	40	8	AL	0.022
GN427-12-55-SR	12	55	SR	8	40	8	AL	0.025
GN427-12-55-EL	12	55	EL	8	40	8	AL	0.023
GN427-12-88-SW	12	88	SW	8	40	8	AL	0.03
GN427-12-88-SR	12	88	SR	8	40	8	AL	0.03
GN427-12-88-EL	12	88	EL	8	40	8	AL	0.03
GN427-12-100-SW	12	100	SW	8	40	8	AL	0.032
GN427-12-100-SR	12	100	SR	8	40	8	AL	0.034
GN427-12-100-EL	12	100	EL	8	40	8	AL	0.03
GN427-12-120-SW	12	120	SW	8	40	8	AL	0.037
GN427-12-120-SR	12	120	SR	8	40	8	AL	0.035
GN427-12-120-EL	12	120	EL	8	40	8	AL	0.037
GN427-12-180-SW	12	180	SW	8	40	8	AL	0.045
GN427-12-180-SR	12	180	SR	8	40	8	AL	0.045
GN427-12-180-EL	12	180	EL	8	40	8	AL	0.051
GN427-12-200-SW	12	200	SW	8	40	8	AL	0.056
GN427-12-200-SR	12	200	SR	8	40	8	AL	0.05
GN427-12-200-EL	12	200	EL	8	40	8	AL	0.05
GN427-12-235-SW	12	235	SW	8	40	8	AL	0.064
GN427-12-235-SR	12	235	SR	8	40	8	AL	0.061
GN427-12-235-EL	12	235	EL	8	40	8	AL	0.06

#25252.63~25254.21#

Application Example

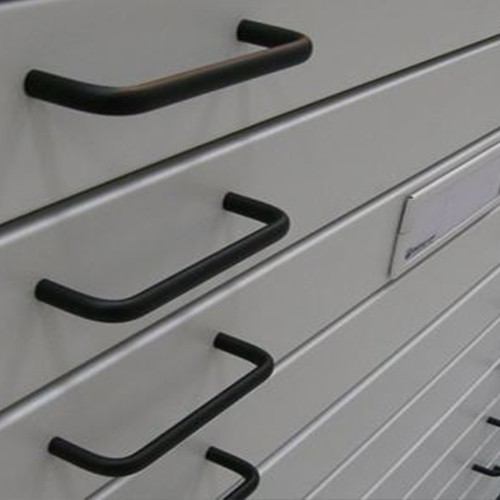

The example below shows cabinet U handles GN427 in use on storage drawers.
