GN7330 Gripping Trays, Zinc Die Casting, Screw In Type

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type A - Mounting from the operator's side

Type C - Mounting from the back

Identification number 1 - Without sealing

Identification number 2 - With sealing

CAD Viewer Technical Data

Product Description

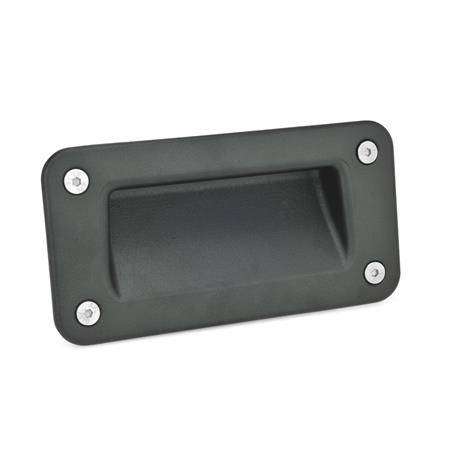

GN7330 Gripping Trays, Zinc Die Casting, Screw In Type

Gripping trays GN 7330 can be easily and quickly installed from the front using countersunk screws or from the back with grub screws.

Gripping trays with housing seal (no. 2) prevent the penetration of any dirt or liquids into the housing interior. Type A is supplied with four additional countersunk sealing screws, which feature a polyamide coating on the head to create a tight seal.

Specification

Zinc die casting, plastic coated, black, RAL 9005, textured finish SW. Silver, RAL 9006, textured finish SR

Housing seal (Identification no. 2) - Rubber NBR, black, glued

Countersunk sealing screws DIN 7991 M5x16 (Type A, Identification no. 2) - Stainless Steel A2, polyamide coating on head

Grub screws (Type C) - Stainless Steel NI, AISI 304, moulded-in

Protection Class IP 66
