DIN6319 Spherical Washer, Stainless Steel AISI 316 A4, Concave or Convex

CloseNextPrevious



CloseNextPrevious

DIN6319 Spherical Washers, Stainless Steel A4
Dished Washers Type C



CloseNextPrevious

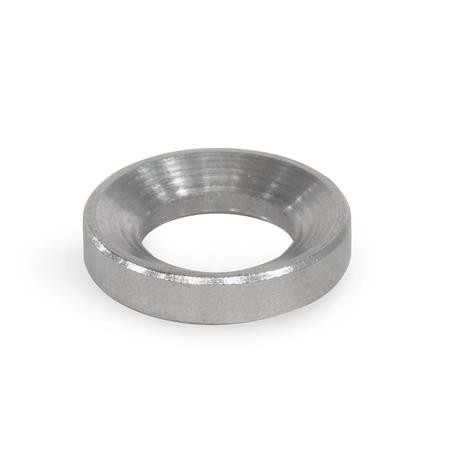

DIN6319 Spherical Washers, Stainless Steel A4
Dished Washers Type D



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type C - Sperical Seat Washer

Type D - Spherical Seat Washer with d3 = d2

CAD Viewer Technical Data

Product Description

DIN6319 Spherical Washers, Stainless Steel, Concave or Convex

Stainless steel spherical washers and dished washers DIN 6319 are used for clamping on non-parallel surfaces.

Thanks to the material used, the spherical washers and dished washers are generally suited for particularly aggressive environmental conditions.

Specification

Stainless Steel A4 AISI 316 not hardened

On Request

Stainless steel spherical washers, type G with d4 > d2
(enlarged outer diameter)
