DIN6335 Star Knobs Aluminium Through Blind Bore high torque comfortable cost effective choice DIN 6335

Standard Parts for Clamping & Operating & Machine Fixtures > Hand Knobs, Star Knobs, Wing & Knurled Thumb Screws & Nuts > Hand Knobs
< Previous Product Next Product >

DIN6335 Star Knobs Aluminium



Type C - with plain blind bore, Tol. H7

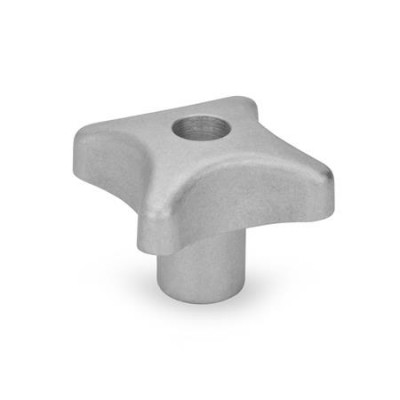

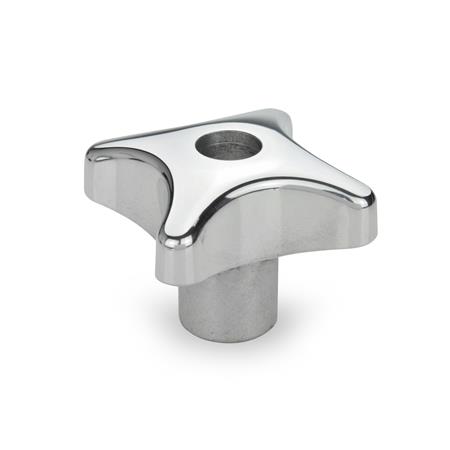

Type D - with threaded through bore

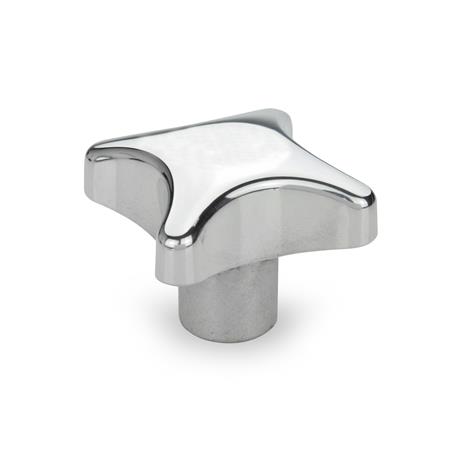

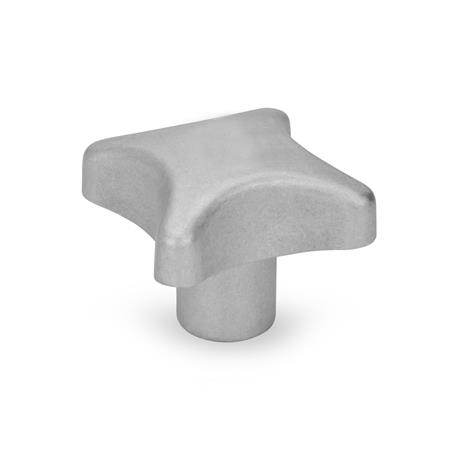

Type E - with threaded blind bore

Select Values to Buy:

Tech Spec:



DIN 6335 Star Knob, Aluminium, Through & Blind Bore.

These star knobs are forged, resulting in a close grain structure which produces a high tensile strength and a smooth surface. They provide a firm grip to easily achieve high torques whilst being comfortable to use.

Any casting flash is invisible due to the advanced production techniques.

Specification

Aluminium.

Matt surface (ground) MT, flash mark not visible.

Polished PL.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2
Thread
d3
Bore
d4h1h2t1
Min.
t2TypeFinishMass

DIN6335-AL-40-B8-C-MTAL40B81425131512CMT0.022
DIN6335-AL-40-B8-C-PLAL40B81425131512CPL0.022
DIN6335-AL-40-M8-D-MTAL40M81425131512DMT0.023
DIN6335-AL-40-M8-D-PLAL40M81425131512DPL0.023
DIN6335-AL-40-M8-E-MTAL40M81425131512EMT0.024
DIN6335-AL-40-M8-E-PLAL40M81425131512EPL0.025
DIN6335-AL-50-B10-C-MTAL50B101832181816CMT0.044
DIN6335-AL-50-B10-C-PLAL50B101832181816CPL0.041
DIN6335-AL-50-M10-D-MTAL50M101832181816DMT0.044
DIN6335-AL-50-M10-D-PLAL50M101832181816DPL0.04
DIN6335-AL-50-M10-E-MTAL50M101832181816EMT0.048
DIN6335-AL-50-M10-E-PLAL50M101832181816EPL0.044
DIN6335-AL-63-B12-C-MTAL63B122040232220CMT0.072
DIN6335-AL-63-B12-C-PLAL63B122040232220CPL0.076
DIN6335-AL-63-M12-D-MTAL63M122040232220DMT0.07
DIN6335-AL-63-M12-D-PLAL63M122040232220DPL0.078
DIN6335-AL-63-M12-E-MTAL63M122040232220EMT0.075
DIN6335-AL-63-M12-E-PLAL63M122040232220EPL0.082
DIN6335-AL-80-B16-C-MTAL80B162550282830CMT0.14
DIN6335-AL-80-B16-C-PLAL80B162550282830CPL0.146
DIN6335-AL-80-M16-D-MTAL80M162550282830DMT0.135
DIN6335-AL-80-M16-D-PLAL80M162550282830DPL0.138
DIN6335-AL-80-M16-E-MTAL80M162550282830EMT0.145
DIN6335-AL-80-M16-E-PLAL80M162550282830EPL0.15
DIN6335-AL-50-B10-B-PL0.04
DIN6335-AL-63-B12-B-PL0.075
