DIN6336 Star Knobs Aluminium Through Blind Bore firm grip high torque comfortable threaded unthreaded plain DIN 6336

Standard Parts for Clamping & Operating & Machine Fixtures > Hand Knobs, Star Knobs, Wing & Knurled Thumb Screws & Nuts > Star Knobs
< Previous Product Next Product >

DIN6336 Star Knob, Aluminium, Through or Blind Bore

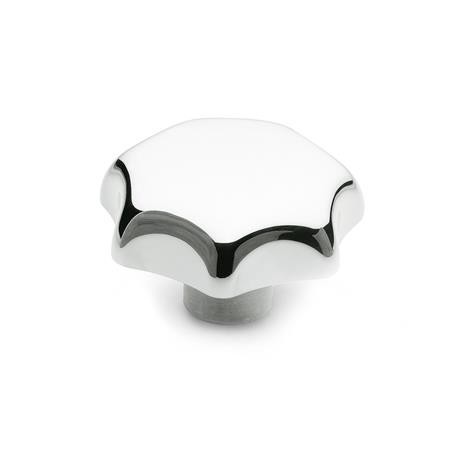

Type C - with plain blind bore, Tol. H7

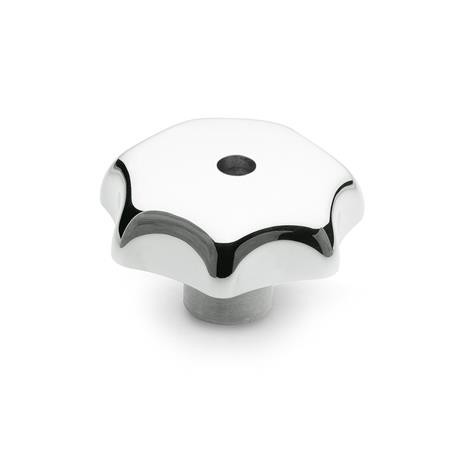

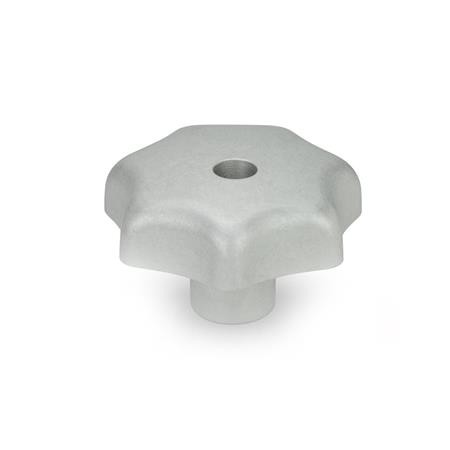

Type D - with threaded through bore.

Type E - with threaded blind bore

Select Values to Buy:

Tech Spec:



DIN 6336 Star Knob, Aluminium, Through or Blind Bore

These star knobs have many uses, including clamping applications and machine adjustment. Star or hand knobs provide a firm grip to easily achieve high torques whilst being comfortable to use. They are available threaded or plain, and in through or blind bores and can be plastic coated on request.

Specification

Aluminium (AL) - matt surface (ground) MT, flash mark not visible. Polished PL.

Plastic Coated on request.

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1d2
Thread
d3
Bore
d4h1h2
Min.
t1t2TypeMass

DIN6336-AL-40-M8-D-MTAL40M8~1425121513D0.032
DIN6336-AL-40-M8-D-PLAL40M8~1425121513D0.035
DIN6336-AL-40-M8-E-MTAL40M8~1425121513E0.025
DIN6336-AL-40-M8-E-PLAL40M8~1425121513E0.037
DIN6336-AL-40-B8-C-MTAL40~B81425121513C0.025
DIN6336-AL-40-B8-C-PLAL40~B81425121513C0.028
DIN6336-AL-50-M8-D-MTAL50M8~1832151816D0.065
DIN6336-AL-50-M8-D-PLAL50M8~1832151816D0.06
DIN6336-AL-50-M8-E-MTAL50M8~1832151816E0.064
DIN6336-AL-50-M8-E-PLAL50M8~1832151816E0.06
DIN6336-AL-50-M10-D-MTAL50M10~1832151816D0.045
DIN6336-AL-50-M10-D-PLAL50M10~1832151816D0.059
DIN6336-AL-50-M10-E-MTAL50M10~1832151816E0.05
DIN6336-AL-50-M10-E-PLAL50M10~1832151816E0.058
DIN6336-AL-50-B8-C-MTAL50~B81832151816C0.055
DIN6336-AL-50-B8-C-PLAL50~B81832151816C0.062
DIN6336-AL-50-B10-C-MTAL50~B101832151816C0.05
DIN6336-AL-50-B10-C-PLAL50~B101832151816C0.06
DIN6336-AL-63-M10-D-MTAL63M10~2040192220D0.118
DIN6336-AL-63-M10-D-PLAL63M10~2040192220D0.12
DIN6336-AL-63-M10-E-MTAL63M10~2040192220E0.11
DIN6336-AL-63-M10-E-PLAL63M10~2040192220E0.113
DIN6336-AL-63-M12-D-MTAL63M12~2040192220D0.114
DIN6336-AL-63-M12-D-PLAL63M12~2040192220D0.104
DIN6336-AL-63-M12-E-MTAL63M12~2040192220E0.12
DIN6336-AL-63-M12-E-PLAL63M12~2040192220E0.13
DIN6336-AL-63-B10-C-MTAL63~B102040192220C0.121
DIN6336-AL-63-B10-C-PLAL63~B102040192220C0.11
DIN6336-AL-63-B12-C-MTAL63~B122040192220C0.117
DIN6336-AL-63-B12-C-PLAL63~B122040192220C0.13
DIN6336-AL-80-M12-D-MTAL80M12~2550232820D0.231
DIN6336-AL-80-M12-D-PLAL80M12~2550232820D0.24
DIN6336-AL-80-M12-E-MTAL80M12~2550232820E0.21
DIN6336-AL-80-M12-E-PLAL80M12~2550232820E0.25
DIN6336-AL-80-M16-D-MTAL80M16~2550232820D0.22
DIN6336-AL-80-M16-D-PLAL80M16~2550232820D0.199
DIN6336-AL-80-M16-E-MTAL80M16~2550232820E0.2
DIN6336-AL-80-M16-E-PLAL80M16~2550232820E0.3
DIN6336-AL-80-B12-C-MTAL80~B122550232820C0.24
DIN6336-AL-80-B12-C-PLAL80~B122550232820C0.211
DIN6336-AL-80-B16-C-MTAL80~B162550232820C0.224
DIN6336-AL-80-B16-C-PLAL80~B162550232820C0.195
DIN6336-AL-40-B8-B-PL0.028
DIN6336-AL-50-B10-B-PL0.058
DIN6336-AL-63-B12-B-PL0.102
DIN6336-AL-80-B16-B-PL0.2
