DIN808 Metric Stainless Steel Universal Joints Friction Bearing Single Jointed Double DIN 808

All Stainless Steel Products
Standard Machine Elements > Universal, Ball Joints & Fork Joints > Universal Joints
< Previous Product Next Product >

DIN808 Stainless Steel Universal Joint







Type EG  - single, friction bearing.

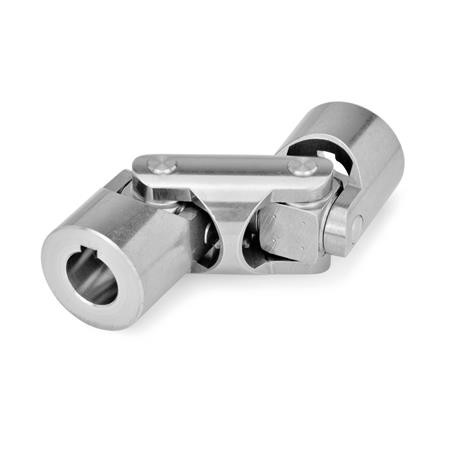

Type DG  - double, with friction bearing.



Bore Code d2:

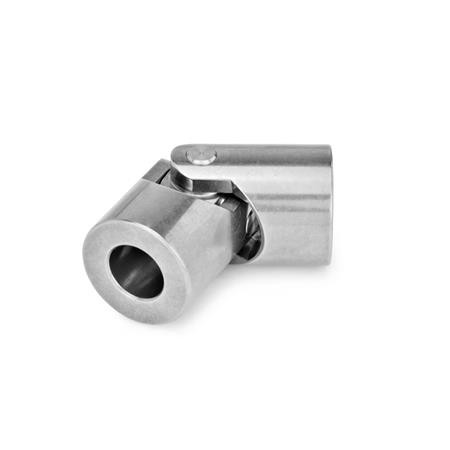

B  - without keyway.

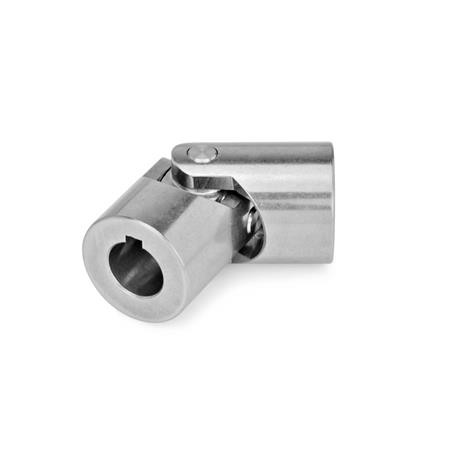

K  - with keyway.

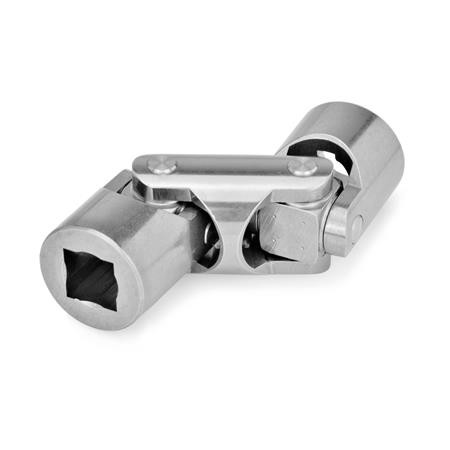

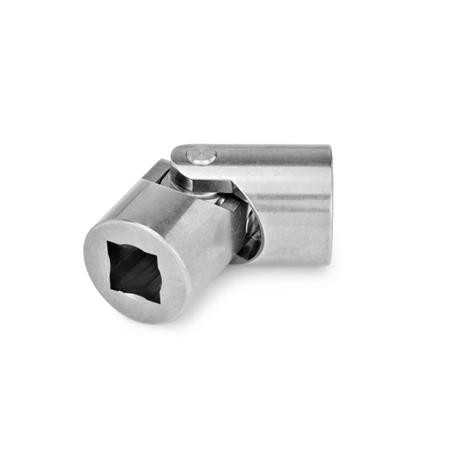

with square - available on request - please call for further details.

Select Values to Buy:

Tech Spec:



DIN 808 Stainless Steel Universal Joint with Friction Bearing.

Since the moveable parts are not surface treated, i.e. not case hardened, the possibilities of application of these universal joints are much more limited compared to the ones made of standard steel. Therefore, the guide lines for the selection of universal joints with friction bearing according to the diagram may be applied at a limited extent only. Rotational speeds over 200 min may become critical.

For continuous use of the Stainless Steel-Universal joints, ample lubrication is very important. This achieved by fitting the joint with a grease filled gaiter GN808.1

Specification

Stainless Steel NI AISI 304

RoHS compliant



Select / Deselect Visible Columns
PartCodeMateriald1d2ss2l1l2l3l4tBore CodeTypeMass

DIN808-16-B6-34-EG-NINI166V63417228BEG0.04
DIN808-16-K6-34-EG-NINI166V63417228KEG0.038
DIN808-16-B6-56-DG-NINI166V65617228BDG0.06
DIN808-16-B8-40-EG-NINI168V840202211BEG0.033
DIN808-16-K8-40-EG-NINI168V840202211KEG0.04
DIN808-16-B8-62-DG-NINI168V862202211BDG0.065
DIN808-22-B10-48-EG-NINI2210V1048242612BEG0.1
DIN808-22-K10-48-EG-NINI2210V1048242612KEG0.097
DIN808-22-B10-74-DG-NINI2210V1074242612BDG0.15
DIN808-22-K10-74-DG-NINI2210V1074242612KDG0.144
DIN808-25-B12-56-EG-NINI2512V1256283013BEG0.15
DIN808-25-K12-56-EG-NINI2512V1256283013KEG0.146
DIN808-25-B12-86-DG-NINI2512V1286283013BDG0.225
DIN808-32-B16-68-EG-NINI3216V1668343716BEG0.29
DIN808-32-K16-68-EG-NINI3216V1668343716KEG0.289
DIN808-42-B20-82-EG-NINI4220V2082414618BEG0.6
DIN808-42-K20-82-EG-NINI4220V2082414618KEG0.598
DIN808-42-B20-128-DG-NINI4220V20128414618BDG0.919
DIN808-42-K20-128-DG-NINI4220V20128414618KDG0.9
DIN808-50-B25-108-EG-NINI5025V25108545526BEG1.13
DIN808-50-K25-108-EG-NINI5025V25108545526KEG1.098
DIN808-50-B25-163-DG-NINI5025V25163545526BDG1.62
DIN808-32-B16-105-DG-NI0.044
DIN808-50-K25-163-DG-NI1.628
DIN808-16-K6-56-DG-NI0.065
DIN808-32-K16-105-DG-NI0.427
DIN808-25-K12-86-DG-NI0.219
DIN808-16-K8-62-DG-NI0.065
DIN808-32-B16-104-DG-NI0.044
