GN918 Eccentrical Cams radial clamping long movement high clamping force safe clamping release

Standard Machine Elements > Eccentrical Cams, Clamping Bolts, Clamping Units > Cam Point Levers
Next Product >

GN918 Eccentrical Cam, Radial Clamping

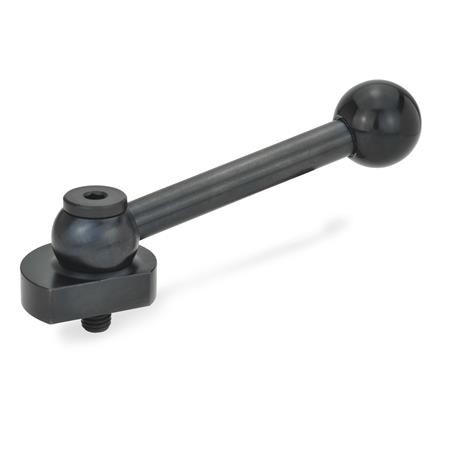

Type KV - with ball lever, angular serrations.

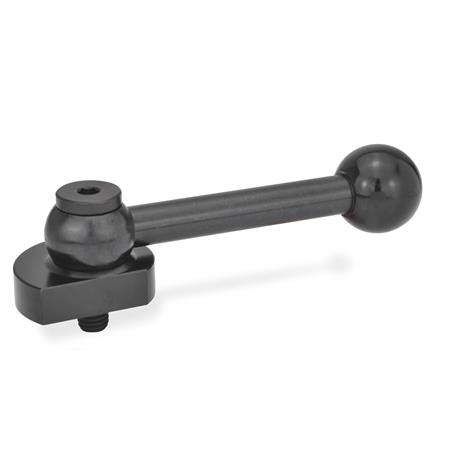

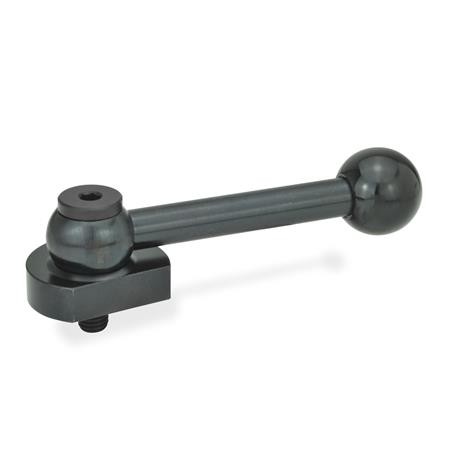

Type GV - with ball lever, straight serrations.

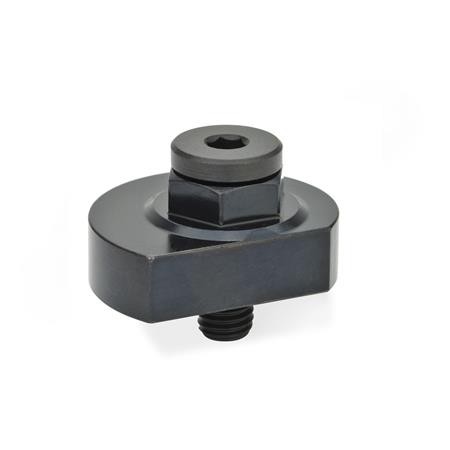

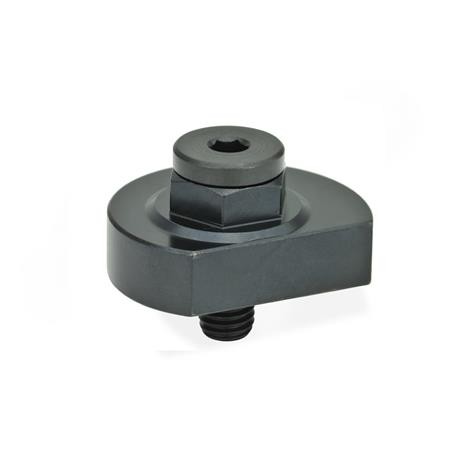

Type SK - with hexagon.

Clamping direction L - anti-clockwise rotation.

Clamping direction R - clockwise rotation.

Select Values to Buy:

Tech Spec:

Product Description

GN918 Eccentrical Cam, Radial Clamping

These eccentrical cams with a relatively long movement and high clamping force give rapid and safe clamping and release. The cam offers the advantage of the clamping force acting over the entire clamping area i.e.

it maintains the clamping force in all angular positions, and at the same time it is self arresting in any position.

The ball lever is linked to the eccentrical cam via a serrated ratchet which permits the positioning of the lever in a preferred position. Eccentrical cams can also be used as stepless adjustable end stops. If the washer

is removed the eccentrical cam can be clamped direct to its support.

The washer saves special requirements to the execution of the female thread, and the eccentrical cam can be used on T-Nuts on machine beds.

Specification

Steel, blackened.

Eccentrical cam and washer, case hardened.

Screw bolt nitrided, Tensile strength 800 N/mm2.

Ball knob DIN319 plastic, Duroplast, black, shiny finish

RoHS compliant

Select / Deselect Visible Columns
PartCodeMateriald1TypeClamping
Direction
d2d3d4h1h2h3h4h5l1l2A/FMass

GN918-40-KV-RST40KVRM8242510312155318100150.179
GN918-40-KV-LST40KVLM8242510312155318100150.179
GN918-40-GV-RST40GVRM8242510312155318100150.177
GN918-40-GV-LST40GVLM8242510312155318100150.178
GN918-40-SK-RST40SKRM8242510312155318100150.087
GN918-40-SK-LST40SKLM8242510312155318100150.087
GN918-50-KV-RST50KVRM1028301234.524623611116190.315
GN918-50-KV-LST50KVLM1028301234.524623611116190.315
GN918-50-GV-RST50GVRM1028301234.524623611116190.313
GN918-50-GV-LST50GVLM1028301234.524623611116190.313
GN918-50-SK-RST50SKRM1028301234.524623611116190.159
GN918-50-SK-LST50SKLM1028301234.524623611116190.159
