EP-A-M Ejector Pin, Bright, Un-nitrided, Similar to ISO6751
Choose your Part
Please select desired options to reveal part number, price and availability
d1 Diameter
1,0 1,5 2,0 2,1 2,2 2,5 2,7 3,0 3,2 3,5 3,7 4,0 4,2 4,5 5,0 5,2 5,5 6,0 6,2 6,5 7,0 7,2 7,5 8,0 8,2 8,5 9,0 9,5 10,0 10,2 10,5 11,0 11,5 12,0 12,2 12,5 13,0 13,5 14,0 14,5 15,0 15,5 16,0 16,2 16,5 17,0 18,0 20,0 25,0 32,0
l Length
100 125 160 200 250 315 400 500 630 800
Stock Availability
Up to 1 for dispatch on 15/10/2026
Product Description

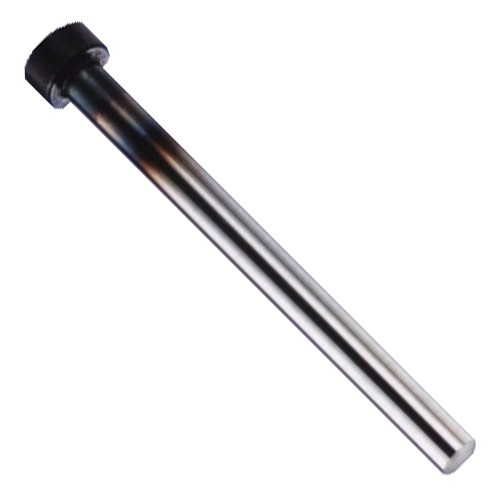

EP-A-M Ejector Pin, Bright, Un-nitrided
These high quality un-nitrided ejector pins are ideal for use in pressured die casts. They are similar to ISO 6751.
Specification
Hot working tool steel 1.2343 & 1.2344 or similar. Temperature resistant to at least 600°C
Shaft core strength approx 1400N/mm
Head HRC 45 + 10/ - 5
Head hot forged with ground finished shaft.
Other standards and special tolerances available on request.

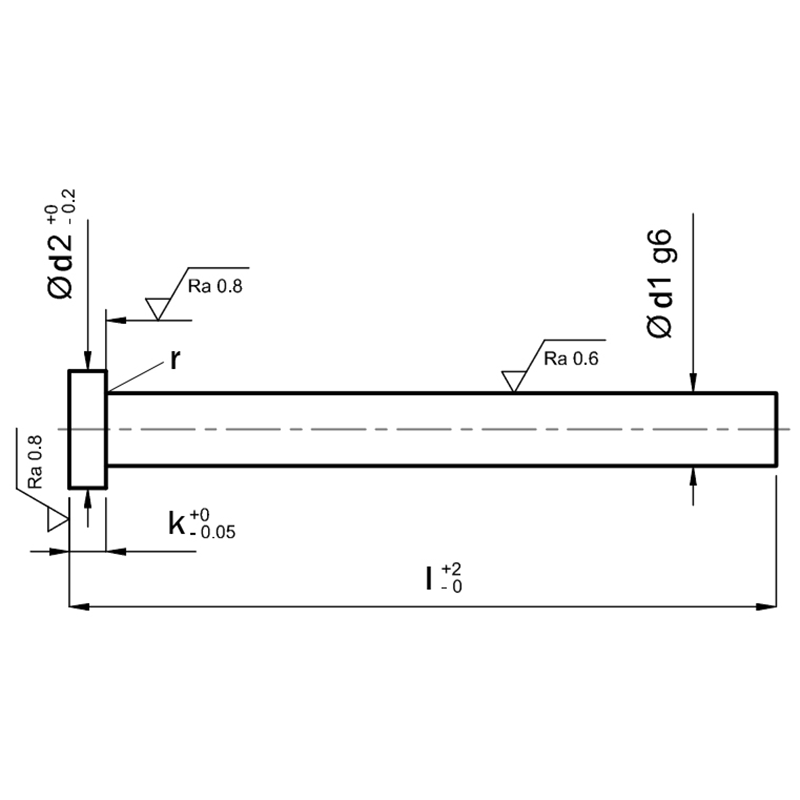

CAD Viewer
Technical Data
