ALO
Pneumatic Scrap Transporter
Please select desired options to reveal part number, price and availability
Options
ELE-8054 - Power Supply Control Unit
Product Description

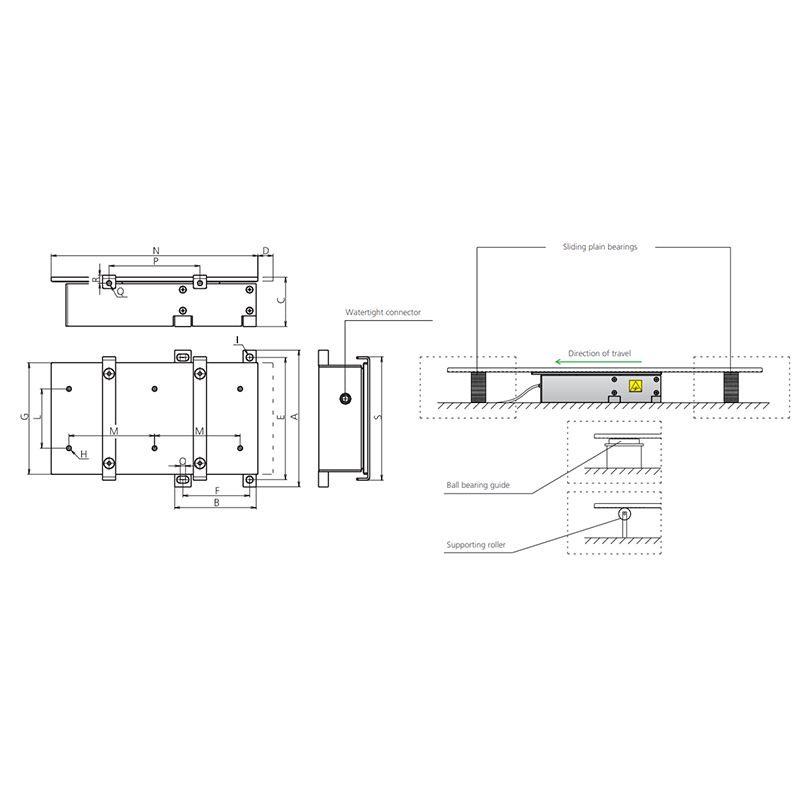

ELE Electical Scrap Transporter
This is a material conveyor system which uses an electrical vibration system, and is ideal in very small spaces It is especially suitable for ejecting parts from difficult positions. Different sized sliders may be used, according to your requirements. The ejector operation is guaranteed also in horizontal position.
The system is activated through electrical connection 24 V. The power supply control unit, connected to the ejector through a watertight connector, is equipped with a STANDBY warning light, an ON/OFF switch. The potentiometer adjusts the speed and has a safety relay that avoids engine damages.
Specification
ELE 10 - Maximum load 10kg
ELE 25 - Maximum load 25kg
ELE - 8054 - Control Unit 161 x 171 x 82 (h) mm
Please see attached flipping book for full details.
