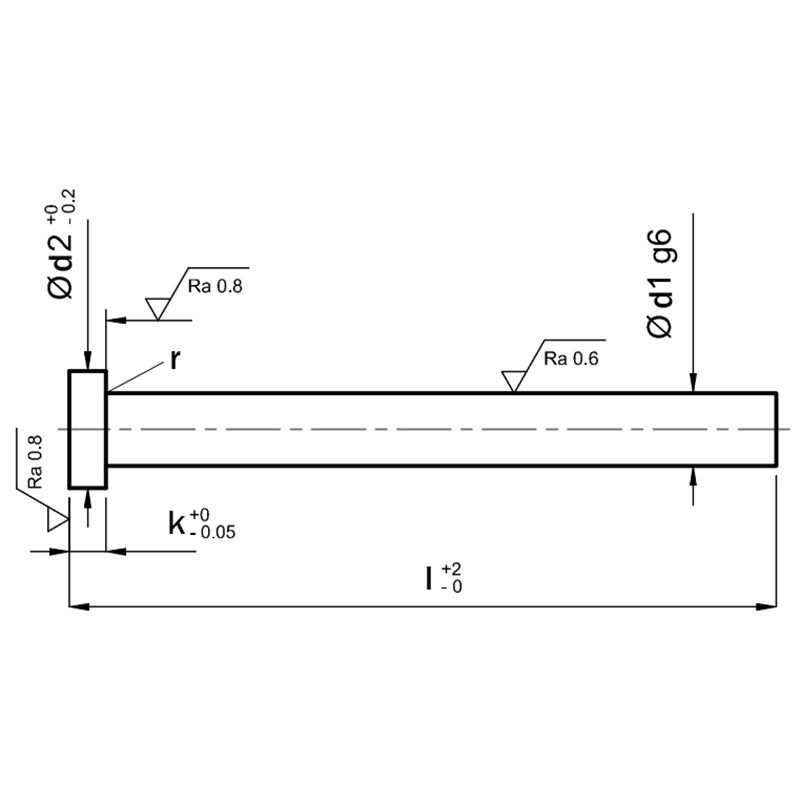

EP-A-M Ejector Pin, Bright, Un-nitrided, Similar to ISO6751

Close Next Previous

Close Next Previous

EP-A-M Ejector Pin, Bright, Un-nitrided

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

EP-A-M Ejector Pin, Bright, Un-nitrided

These high quality un-nitrided ejector pins are ideal for use in pressured die casts. They are similar to ISO 6751.

Specification

Hot working tool steel 1.2343 & 1.2344 or similar. Temperature resistant to at least 600°C

Shaft core strength approx 1400N/mm

Head HRC 45 + 10/ - 5

Head hot forged with ground finished shaft.

Other standards and special tolerances available on request.
