Please select desired options to reveal part number, price and availability
Options
Type D0 - Blank, ground, without rubber underlay
Type D1 - Blank, ground, rubber clipped on, black
Type D3 - Blank, ground, rubber vulcanised, black

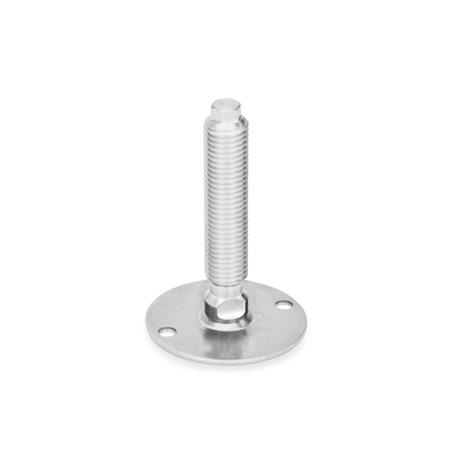

Type B0 - Without rubber underlay, with 2 fixing holes
Version S - Without locknut, external hexagon below
Version SK - With locknut, external hexagon below
Version T - Without locknut, flat width below
Version TK - With locknut, flat width below
Version U - Without locknut, flat width below, internal hexagon above
Version UK - With locknut, flat width below, internal hexagon above
Version V - Without locknut, flat width below, external hexagon above
Version VK - Without lock, flat width below, external hexagon above

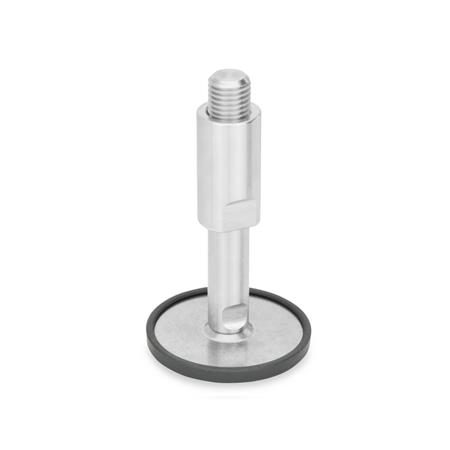

Version W - With adjustable sleeve
Version X - With internal thread
Product Description
GN41 Levelling Foot, Stainless Steel, Optional and Lock Nut
These levelling feet, GN 41, are used for the levelling of machinary on uneven surfaces, and also assist with the reduction of noise and vibration.
Being manufactured from stainless steel, they are ideal for use in clean room environments, such as found in the food, pharmaceutical and medical industries and their associated processing and packaging.
They are delivered ready mounted and cannot be unassembled.
Specification
Base plate - Stainless Steel NI, AISI 304
Threaded stem - Stainless Steel NI, AISI 303
Hexagon nut ISO4032 - Stainless Steel NI, AISI 304
Rubber cap - Clipped on, black, Santoprene® (TPE), 80 ≈ Shore A
Rubber underlay - Vulcanised, black, Perbunan® (NBR), 70±5 Shore A
Standard part number GN440.5 has been changed! Because of a change of the standard part number your input is no longer valid. Your search was automatically changed to the new standard part number GN41.
