GN000.9 Position Indicators, Retaining System, Analog Indication
Type R - Numbers ascending clockwise

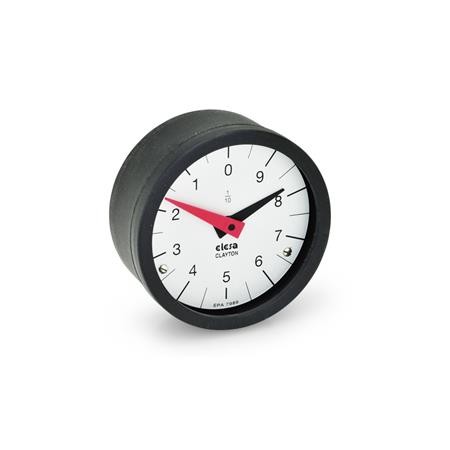

Type L - Numbers ascending anti-clockwise
GN000.9 Position indicators with retaining system and analog indication
Position indicators GN000.9 have been shaped for installation in different operating devices.
The housing, the hand spindle housing, hand spindle and safety glass are produced from one single piece of material and ultrasonically welded giving a spray water proof and corrosion free unit (Protection class IP 65).
The installation principle with the forced drive allows the use of the positioning indicator GN000.9 in any position even in cases of strong vibration.
The reduction gear ratio will show how many spindle revolutions (long red pointer) will be required for one single revolution of the shorter black pointer.
Housing - Plastic (Polyamide PA), glass fibre reinforced, black, matt.
Sight glass - Plastic (Polyamide PA), clear glass, ageing proof, shock-resistant.
Housing / Sight glass - temperature resistant up to 100 °C, oil and solvent proof (not suitable for alcohol)
Pointer Plastic - long pointer: red. Short pointer: black
Scale - Aluminum, matt anodized, graduations and numbers black
Special scales - available on request.
Note - * denotes not available from stock, requires a minimum order quantity.
