Product Description

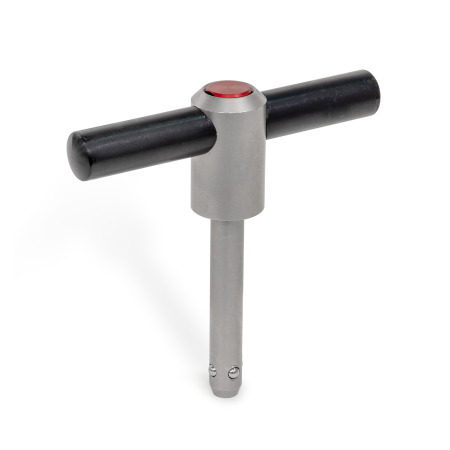

GN1131 Lifting Pin, Self Locking, with T Handle, Stainless Steel

Lifting pins GN 1131 with T-handle are used for simple manual lifting and carrying of devices and tools, for example.

Pressing the red button will release the locking balls, allowing the lifting pin to be moved into or out of the holding bore on the workpiece. Holding bores with d₁ H11 are sufficient for safe use of the lifting pins. Holding bushings GN1132 are also available.

Lifting pins GN1131 are designed exclusively for lifting, carrying and transporting with hand power and may not be used as lifting points in connection with lifting equipment or cranes.

Specification

• Pin - stainless steel AISI 630, precipitation hardened, NI
• Handle - aluminium, anodized, black
• Push button - aluminium, anodized, red
• Spring - stainless steel

Accessories

Holding bush GN1132
