GN113.20 Ball Lock Pins, Stainless Steel, Aluminium Handle

Choose your Part

Please select desired options to reveal part number, price and availability

Options

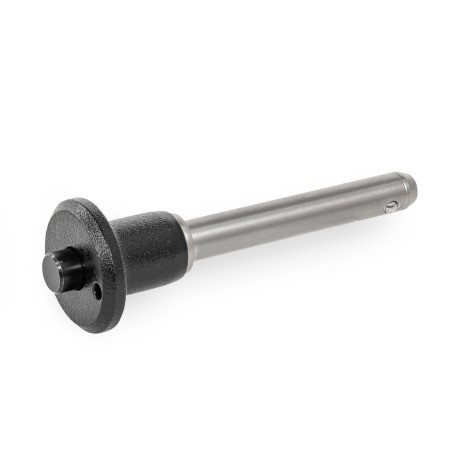

Type P with mushroom shaped handle

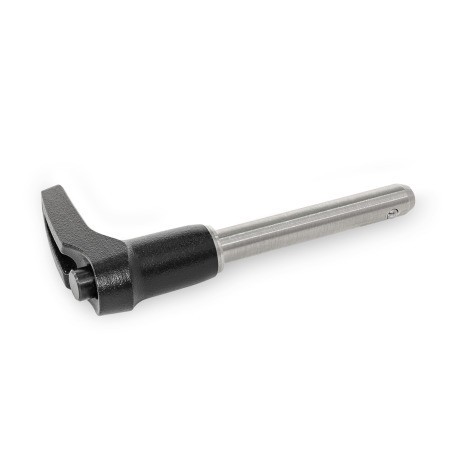

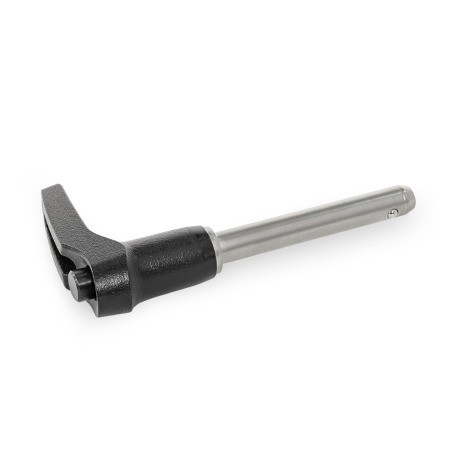

Type L with L handle

Type T with T handle

Product Description

GN113.20 Ball Lock Pins, Stainless Steel, Aluminium Handle

Ball lock pins GN 113.20 are used for quick fixing, connecting and locking of various parts and workpieces. Typically, they are used as bearing bolts that have to be frequently assembled and disassembled.

The two balls are unlocked by pressing the spring-loaded button and locked again when released.

The hardened pin of version C has high wear resistance and tensile strength, making it suitable for applications involving heavy elements.

The information show in 'Technical Data' contains the load capacities for the double-sided shearing resistance (breaking strength).

Specification

• Pin
• Stainless steel AISI 303 A
• Stainless steel AISI 630 C, precipitation hardened.
• Balls - stainless steel AISI 420C
• Handle - aluminium, powder coated, black, RAL 9005, textured finish.
• Pressure spring - stainless steel AISI 631
• Operating temperature -30 degrees C to +150 degrees C

Accessory

Retaining cables GN111.8 (with mounting tabs)

Retaining cables GN111.8 (with key rings/mounting tab)

Guide bushes DIN172A (with collar)

Guide bushes DIN179A (without collar)

Holding bushes GN1140
