GN268
Collar Bush, Steel, for Scaling Sets
Please select desired options to reveal part number, price and availability
Options
Type B - with Collar
Type S - with Countersunk Head
Product Description
GN1140 Holding Bushings, Stainless Steel, For Ball Lock Pins / Locking Pins

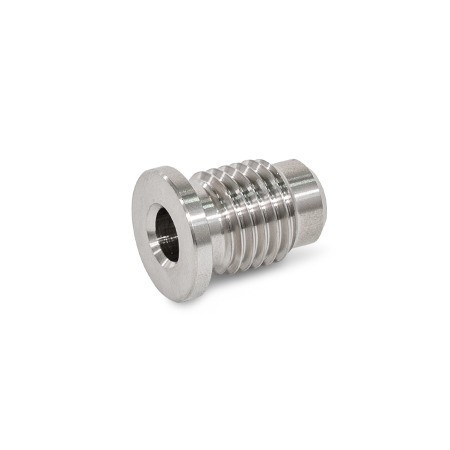

Holding bushings GN 1140 are designed for ball lock pins, such as GN113.3, or locking pins GN114.2. They are used when the existing wall thickness is thin or for installation in a blind hole. They also provide reinforcement when the locking pin or ball lock pin is used with soft, sensitive materials.
Type B establishes a defined screw-in depth due to the collar. Type S with countersunk head allows for centered, flush installation in an easily created hole.
The holding bushes fit the following locking pins and ball lock pins: GN113.3, GN113.4, GN113.5, GN113.6, GN113.7, GN113.8, GN113.9, GN113.10, GN113.11, GN113.12, GN113.30, GN114.2, GN114.3, GN114.6, GN124.2, GN124.3, GN214.2, GN214.3, GN214.6
