Please select desired options to reveal part number, price and availability
Options
Type DK - Operation with triangular spindle (DK6,5)
Type VDE - Operation with double bit
Id no. 1 - Lock housing with round stop
Id no 2 - Lock housing with stop, rectangular with handle
Id no 3 - Lock housing with stop, round with handle
Product Description

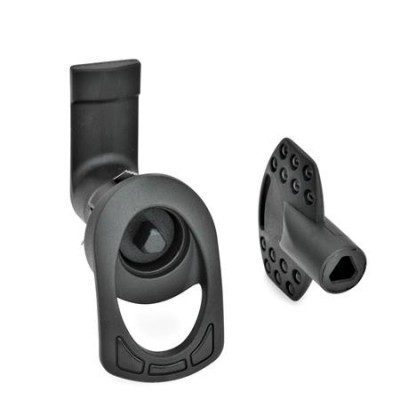

GN115.5 Plastic Latches, Self Extinguishing, Snap-in Mounting
Latches GN 115.5 with black finish SW are made entirely of a self-extinguishing plastic material, classed as self-extinguishing under UL 94 V-0.
The classification under UL 94 V-0 (Underwriters Laboratories) describes the fire behaviour of plastic. In the test, a plastic test specimen with a certain shape and with certain dimensions is placed vertically and set on fire. For classification V-0, the flame must go out within 10 seconds without generating burning drops.
Plastic key for triangular spindle or key with double bit GN119.2 are included in the delivery.
Specification
Plastic (Polyamide PA), glass fibre reinforced.
Lock housing - Stop round (Identification no. 1), black, RAL 9005, textured finish, SW, temperature resistant up to 130 °C, self extinguishing. Chrome-plated CR, temperature resistant up to 80 °C.
Lock housing - Stop rectangular (Identification no. 2), black, RAL 9005, textured finish, SW, temperature resistant up to 130 °C, self extinguishing.
Lock housing - Stop round with handle (Identification no. 3), black, RAL 9005, textured finish, SW, temperature resistant up to 130 °C
All other parts - Stainless Steel
Protection class IP 65
Accessories - Keys GN119.2
