GN115.8 Hook Type Latch, Stainless Steel, Operation with Socket Keys, Protection Class IP69k

Choose your Part

Please select desired options to reveal part number, price and availability

Options

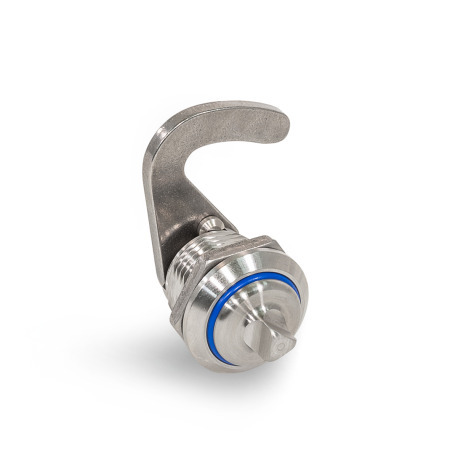

Type AD7 - with three exterior flats.

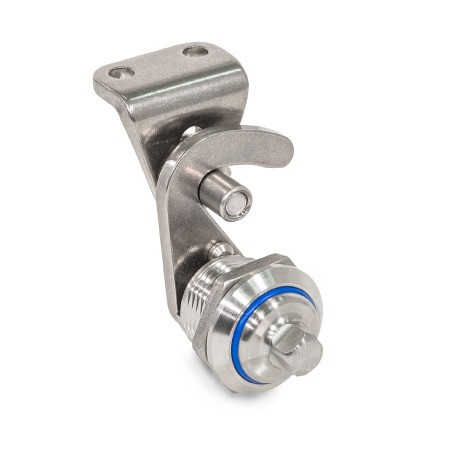

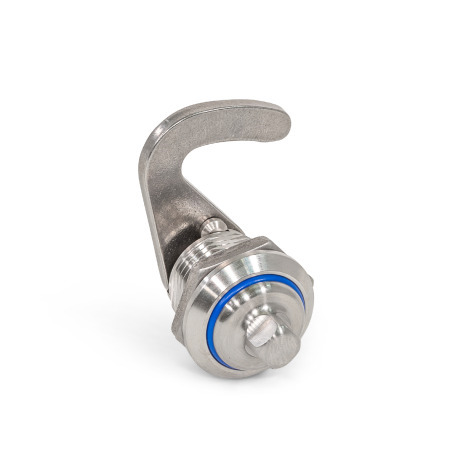

Type AV8 - with four exterior flats.

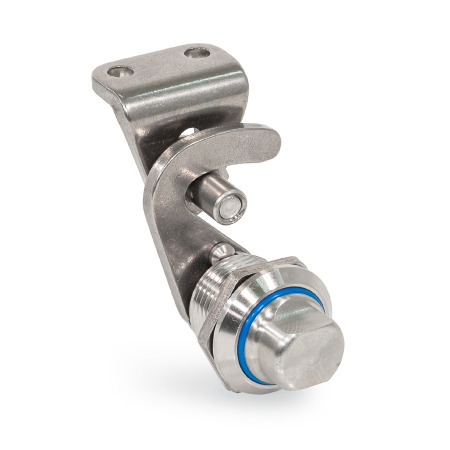

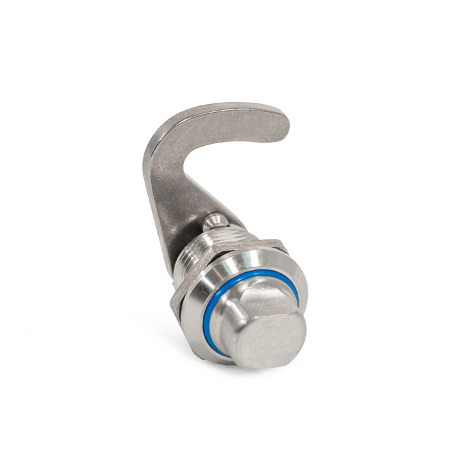

Type AZ13 - with two exterior flats.

Hook Version H1 - Pivoting radius R=28.

Identification Number 1 - without latch bracket.

Identification Number 2 - with latch bracket.

Product Description

GN115.8 Hook Type Latches, Stainless Steel, Operation with Socket Keys, Protection Class IP69k

Hook-type latches GN 115.8 with hook and latch bracket, are mainly used for sliding doors and flaps. The locking action is in radial direction to the axis of rotation, resulting in a wide variety of different uses.

Thanks to multiple seals, the parts have the highest protection rating of IP69k. The latches also satisfy the basic hygiene requirements according to DIN1672-2 and DIN14159.

The latch hook is enclosed loose.

Specification

• Lock housing - Stainless Steel AISI 303 N.
• Other parts - Stainless steel AISI 304
• Seals - Acrylonitrile butadiene rubber (NBR). Silicone rubber (MVQ). Operating temperature -30 degrees C to +100 degrees C
• Protection Class IP69k

Accessories

Socket Keys GN119.2

Socket Keys GN1151

Protective Caps GN120

Opening Handles GN120.1

On Request

Hook type latches with different hook distance A

Hook with other pivoting radius R
