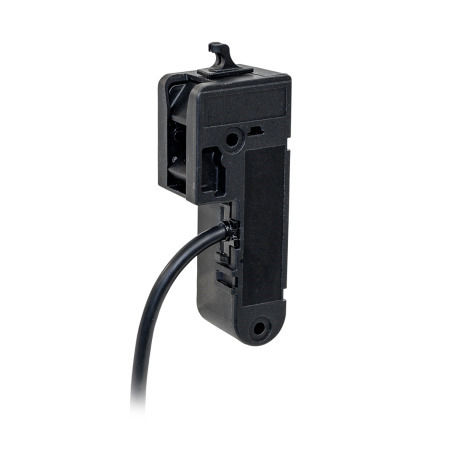

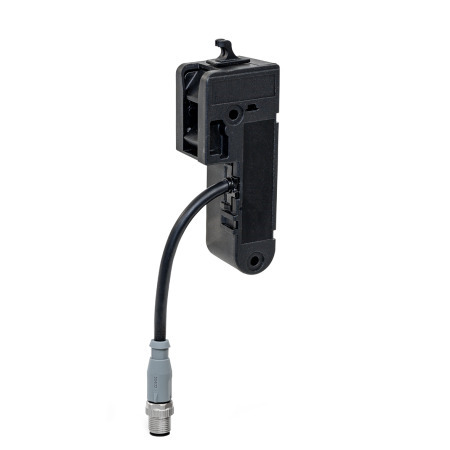

GN120.4 Electromechanical Locking Systems, Plastic, for Latches

Electromechanical locking systems GN 120.4 are used together with latches GN115 or GN515. In the closed position, the latch arm is locked by the locking catch and by an electrical input signal. In addition, the presence of the latch arm in the closed position is detected and emitted as an output signal.

The locking system can be used for left or right locks and increases the latch distance A by 8 mm. Existing installations can be upgraded with minimal effort. The electromechanical locking system is also not visible from the outside.

Specification

• Housing / Locking Catch / Latch Arm Check - plastic, polyamide (PA)
• Glass fibre reinforced
• Black, RAL 9005, matte
• Cable
• Plastic, polyurethane (PUR), black
• Plug
• Plastic, 8 Pin M12x1
• Knurled screw connection - brass, nickel plated
• Operating temperature -20 C to +60 C

Accessory

Cables with connector coupling GN330
