GN115 Latch, Locating Ring Black Plastic Coated, Not Lockable

images/300/GN115-Latches-with-operating-elements-locating-ring-black-sketch_H.png

CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

Type SG - Operation with star knob

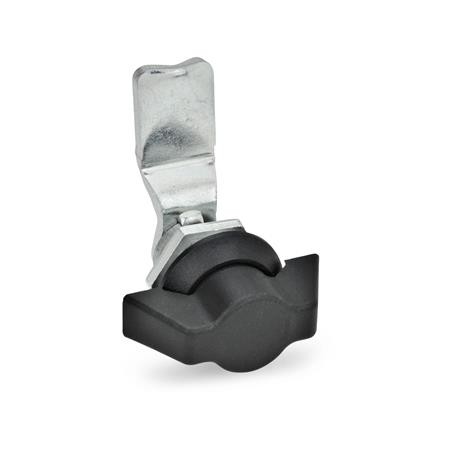

Type SK - Operation with wing knob

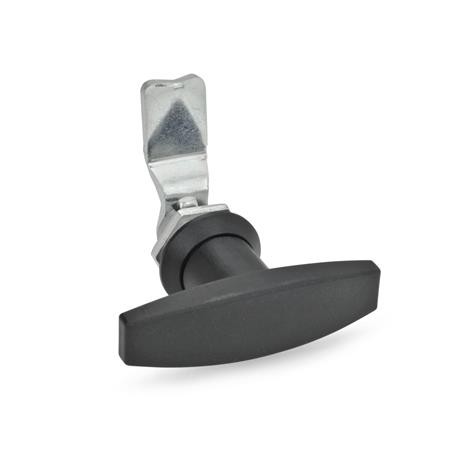

Type ST - Operation with T-Handle

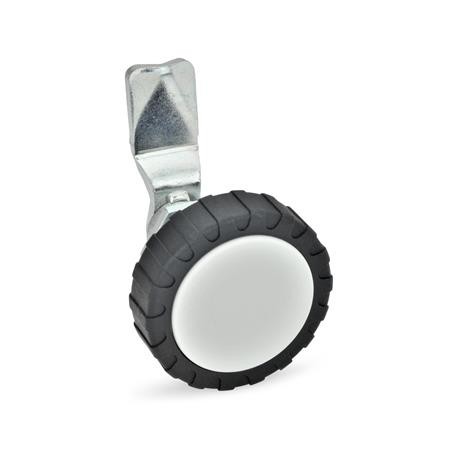

Type RG - Operation with knurled knob GN7336

Type KG - Operation with wing knob

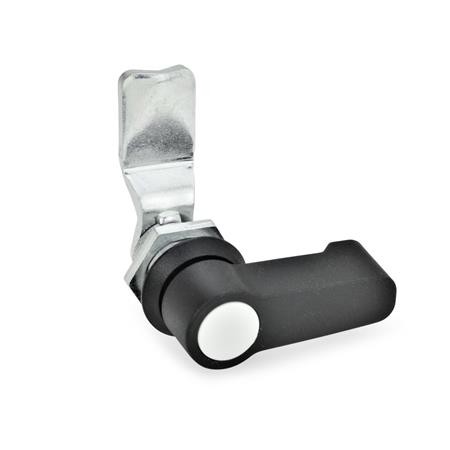

Type HG - Operation with lever

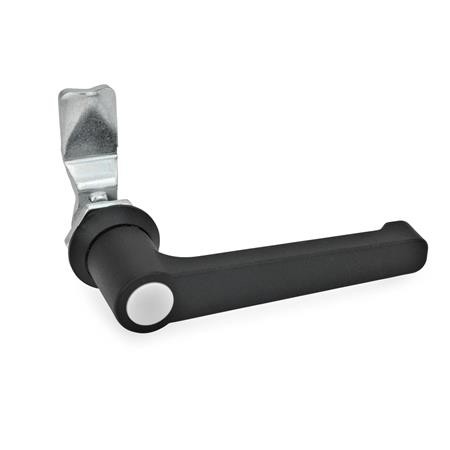

Type LG - Operation with lever handle



CAD Viewer Technical Data

Product Description

GN115 Latch, Locating Ring Black Plastic Coated, Not Lockable

This latch, GN115, is a reasonably priced option, offering a straight-forward locking action rather than a locking and clamping action. Latches GN115 lock by a turning operation limited to 90° which moves the locking behind the door frame. The bevels of the latch ease the closing of the door.

The choice of 22 differently shaped catch plates gives a range for latch distance A of 4 to 50 mm.

The lockings are included loose.

Specification

Lock housing - Zinc die casting

Locating ring - plastic coated black, RAL 9005, textured finish SW

All other parts - Steel, zinc plated, blue passivated

Operating handles

Type SG, SK, ST, RG, KG, HG - Plastic (Polyamide PA), black, matt

Type LG - Zinc die casting - plastic coated, black, RAL 9005, textured finish

Type RG, KG, HG, LG - Cover cap, light grey
