GN115 Latch, Locating Ring Chrome Plated, Not Lockable

images/300/GN-115_-Latches-not-lockable-locating-ring-chrome-plated-sketch_W.png




CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

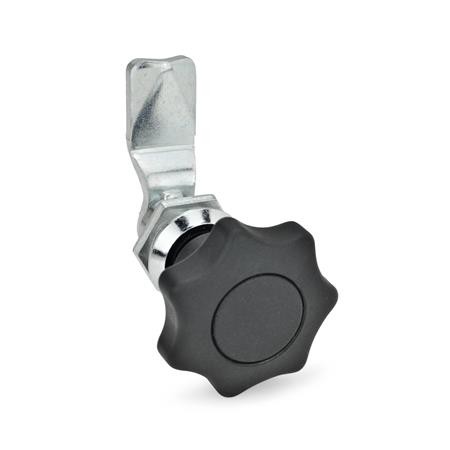

Type SG - Operation with star knob

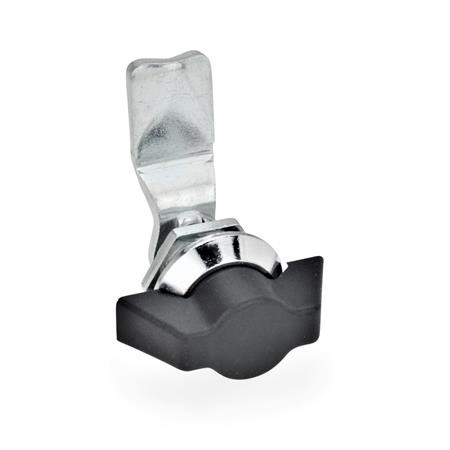

Type SK - Operation with wing knob

Type ST - Operation with T-Handle

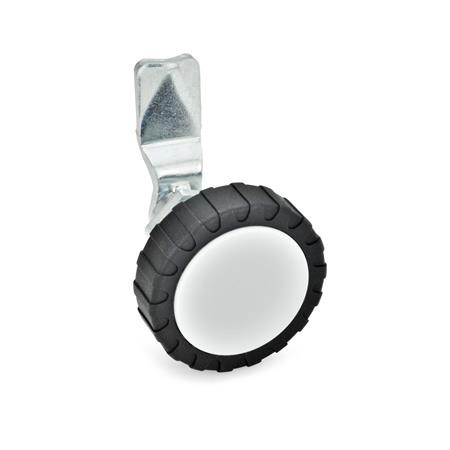

Type RG - Operation with knurled knob GN7336

Type KG - Operation with wing knob

Type HG - Operation with lever

CAD Viewer Technical Data

Product Description

GN115 Latch, Locating Ring Chrome Plated, Not Lockable

Latches GN 115 lock by a turning operation limited to 90° which moves the locking behind the door frame. The bevels of the latch ease the closing of the door.

Latches with different cranks cover a latch distance A from 4 to 50 mm.

Latches GN 115 are supplied with loosely enclosed locking.

Specification

Lock housing - Zinc die casting

Locating ring - chrome plated

All other parts - Steel, zinc plated, blue passivated

Operation elements - Plastic (Polyamide PA), black, matt

Cover cap type RG, KG, HG - light grey
