> Home / Hinges, Latches and Locks for Doors, Cupboards, Drawers, Hatches and Covers

We are closed for the bank holiday, any order placed over the weekend / Monday will be processed on Tuesday on our return. Enjoy the sunshine!

PDFs

Catalogue Technical Specification

CAD Data

3D CAD Files
GN122.2 3D CAD Model
GN122.2 3D CAD Model
GN122.2 3D CAD Model

GN122.2 Hinges without Indexing Positions, Plastic

Close Next Previous

Close Next Previous

GN122.2: Hinge
Type: SH

Close Next Previous

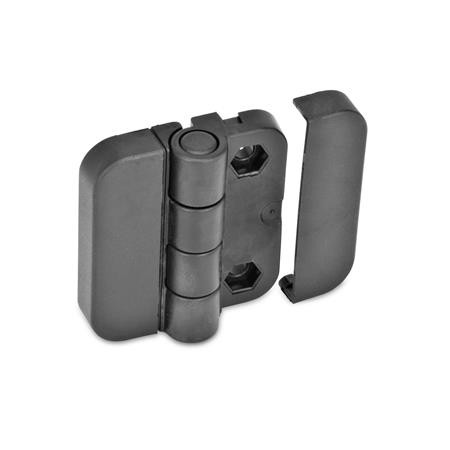

GN122.2: Hinge
Type: EH

Close Next Previous

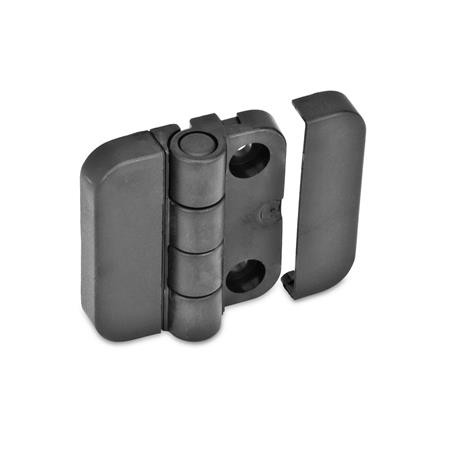

GN122.2: Hinge
Type: CH

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type SH - 2x2 bores for countersunk screws
Type CH - 2x2 bores for socket cap screws DIN 912-M4
Type EH - 2x2 bores for hexagon screws

Product Description

GN122.2 Hinges without Indexing Positions, Plastic

Hinges GN 122.2 are free running having the same design as hinges GN 122.1

The covers prevent not only the entering of dirt in the range of the screws, but give as well an appealing appearance to the hinges.

Specification

Plastic (Polyacetal POM) - glass fiber reinforced, black, matt, temperature resistant up to 80° C
