GN122.1 Hinge with 4 Indexing Positions, Plastic

CloseNextPrevious



CloseNextPrevious

GN122.1: Hinge
Type: SH



CloseNextPrevious

GN122.1: Hinge
Type: EH



CloseNextPrevious

GN122.1: Hinge
Type: CH



CAD Viewer Technical Data

Series Selector

Options

Type SH - 2x2 bores for countersunk screws

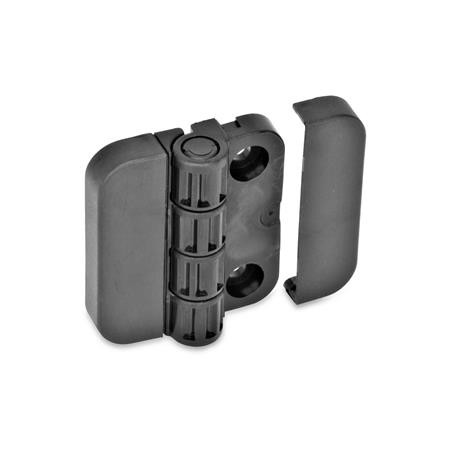

Type CH - 2x2 bores for socket cap screws DIN 912-M4

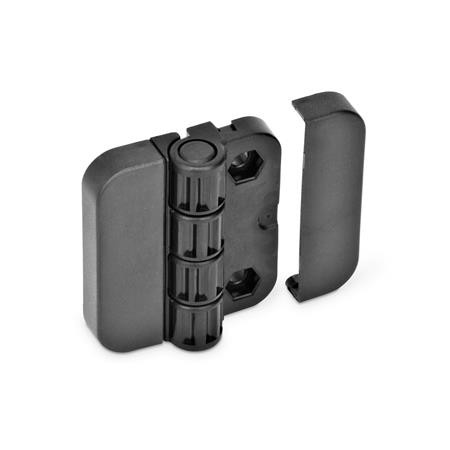

Type EH - 2x2 bores for hexagon screws

CAD Viewer Technical Data

Product Description

GN122.1 Hinge with 4 Indexing Positions, Plastic

Hinges GN 122.1 with indexing positions keep the door in the three specified positions without additional mechanism. In indexing position the loosening torque is 1.1 Nm (test result after 10,000 detents).

The covers prevent not only the entering of dirt in the range of the screws, but give as well an appealing appearance to the hinges.

Specification

Plastic (Polyacetal POM) - glass fiber reinforced, black, matte, temperature resistant up to 80 °C
