GN233 Hinges, Plastic, Adjustable Friction

CloseNextPrevious



CloseNextPrevious

GN233: Hinge
Colour SW - Black RAL 9005 matte



CloseNextPrevious

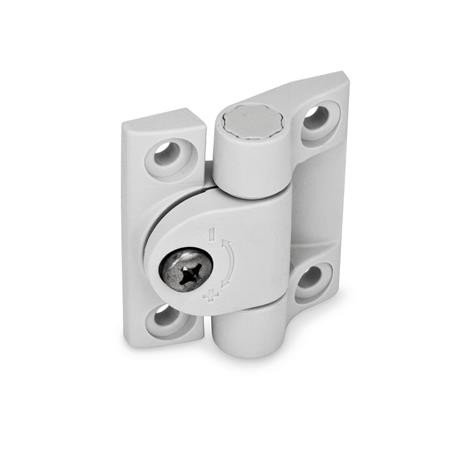

GN233: Hinge
Colour WS - White RAL 9002 matte



CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

GN233 Hinges, Plastic, Adjustable Friction

The actuating torque of these hinges GN 233 can be adjusted using a set screw, allowing doors and flaps to be kept open or partially open or closed. Adjusting is a simple process, allowing the hinges to be customised to your exact requirements.

Endurance tests have shown that the friction torque has not changed even after 60.000 opening / closing cycles (at 0.8 Nm tightening torque of the set screw).

The hinges comply with flammability category UL 94-HB.

Specification

Plastic (Polyacetal POM), temperature resistant up to 65 °C, colour (matt): black, RAL 9005, SW. White, RAL 9002, matte WS.

Pin - Plastic (Polycarbonate PC), black

Set screw - Stainless Steel NI, AISI 303
