GN130 Ledge Handles, Plastic

Choose your Part

Please select desired options to reveal part number, price and availability

Product Description

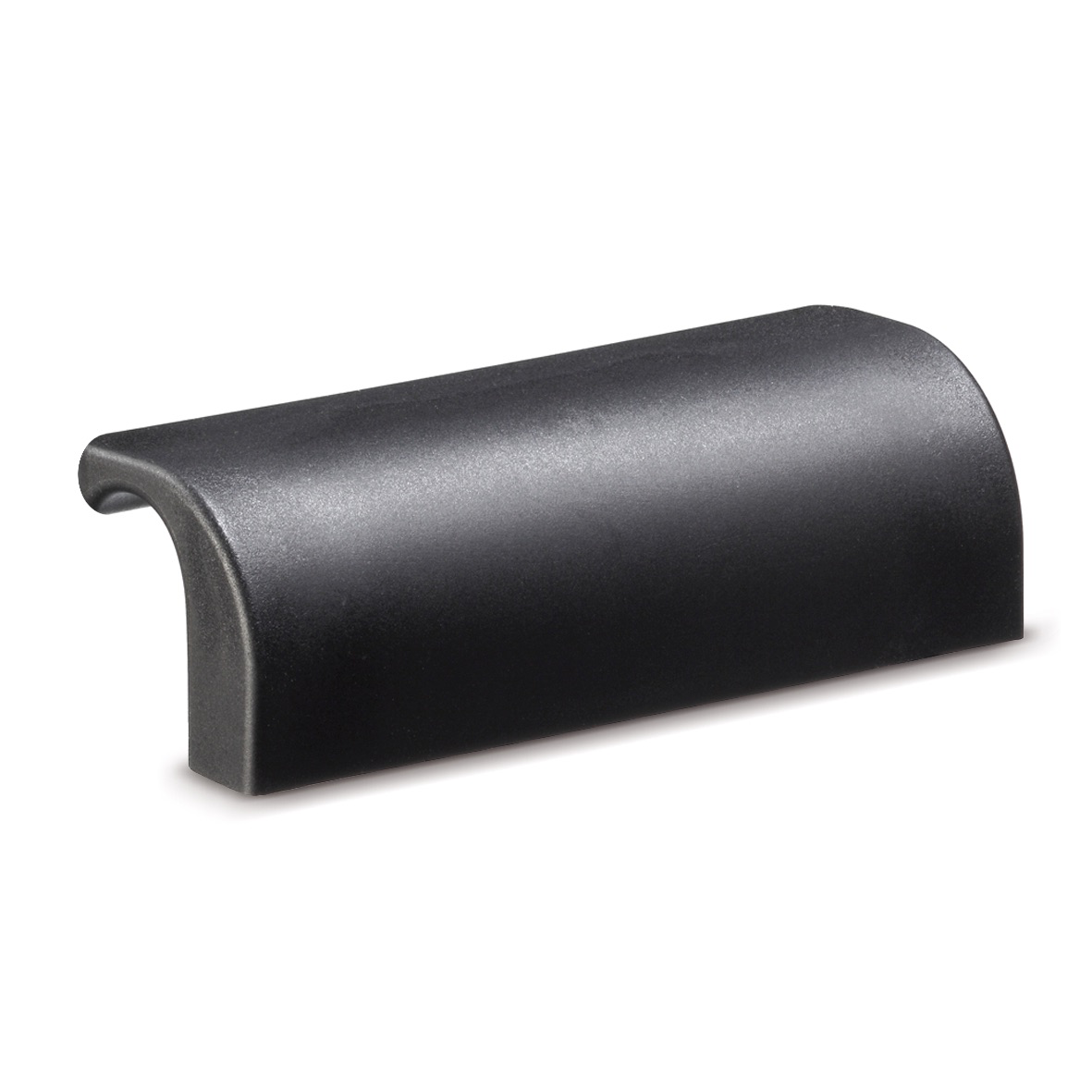

GN130 Plastic Ledge Handles

Ledge handles GN 130 are ideal for use on drawers, cupboards & sliding doors. Bore holes B 4.5 are intended for fixing with self-tapping screws of thread size ST 4.8, such as DIN ISO 7049 fillister-head screws.

The forces F1 and F2 given in the table are failure loads, which means that the appropriate safety factor must be taken into account. No liability is otherwise accepted for the reference values given. They do not constitute a warranty of quality. The user must determine from case to case whether the handle strip is suitable for the intended purpose. Ambient factors and ageing processes may influence the given values.

Specification

• Plastic - Technopolymer (Polyamide PA), glass fibre reinforced, temperature resistant up to 100 °C, dark grey, RAL 7021, matt SG
• Bushing - Brass
