GN135.1 3D CAD Model

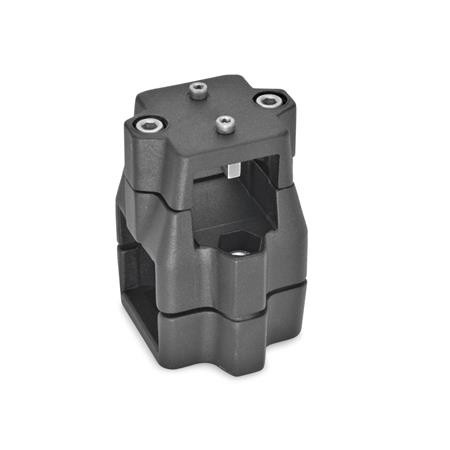

GN135.1 Linear Actuator Connectors, Aluminium, Multi Part Assembly



GN135.1: Linear Actuator Connector
Bore d1: B40


GN135.1: Linear Actuator Connector
Square s1: V40

CAD Viewer Technical Data

Series Selector


Identification Number 2 - with 4 stainless steel clamping screws DIN 912

CAD Viewer Technical Data

Product Description

GN135.1 Linear Actuator Connectors , Aluminium, Multi Part Assembly

GN 135.1 Linear actuator connectors are normally supplied mounted in connection with a square linear actuator and for function control.

The fixing bores for the follower are always located in the lid of the d1 bore and/or the s1 square. Centering bushings in the through hole eliminate the axial clearance. The width of the s1 square is dimensionally aligned with the play of the square linear actuators.

The square s2 of the linear actuator connector is supplied unmachined in the standard design.

The standard version of the clamping screws are socket cap screws with hexagonal socket DIN912. They can be replaced by clamping kits GN911


Aluminum - plastic coated, black, RAL 9005, textured finish, SW

Clamping bores - not machined

Fastening elements / Transfer elements (Socket cap screws DIN 912, Hexagon nuts DIN 985, Centering bushings, follower) - Stainless Steel AISI 304


Clamping kits GN911

On Request - (minimum order quantity required)

Linear actuator connectors with reduced play

Other bore and square combinations

GN135.2 Linear actuator connectors for double systems
