GN139.1 Hinge, Zinc Die Cast, Plastic Coated with Safety Switch

CloseNextPrevious



CloseNextPrevious

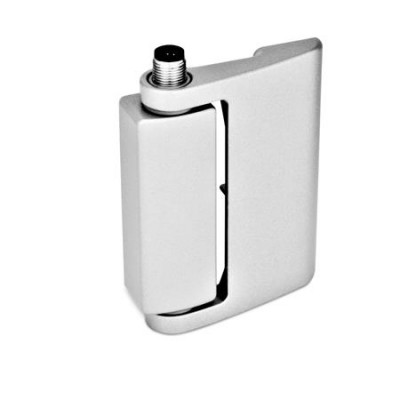

GN139.1: Hinge
Type: A - Connector Plug at the Top



CloseNextPrevious

GN139.1: Hinge
Type: B - Connector Plug from the Bottom



CloseNextPrevious

GN139.1: Hinge
Type: C - Connector Plug at the Back



CAD Viewer Technical Data

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type A - Connector plug at the top

Type B - Connector plug from the bottom

Type C - Connector plug at the back (with 0.2 m cable)

CAD Viewer Technical Data

Product Description

GN139.1 Hinge Zinc Die Cast, Plastic Coated with Safety Switch

These hinges with integrated safety switches, GN 139.1, have been designed for the position monitoring of doors and covers of machines and plant.

Opening the door will activate the switch contacts which, in turn, will then e.g. interrupt a protective circuit via break contact (NC) and at the same time signal the door opening by closing a normally open contact element (NO).

The contact blocks are fitted with positive opening slow-action contacts, i.e. they will definitely be separated when activated and have no hysteresis. The angle at which the switching points are reached are adjustable (see contact travel diagram).

Together with the integrated contact blocks, the hinges are a compact, easy to mount unit with an attractive design. The mounting from the back makes the hinge more tamper-proof.

Specification

Zinc die casting, plastic coated, silver metallic

Pin - Stainless Steel, AISI 303

Accessories

Cable with connector coupling - 8-pole, 5 and/or 10 meter long: GN330-M12x1-4-G-5 and GN330-M12x1-4-G-10

Mounting plates - GN139.3 / GN139.4

On Request

Hinge with operating angle > 0°

Hinges with other contact loadings

Related Series
