Please select desired options to reveal part number, price and availability
Options
Identification no. 2 - with clamping screw DIN 912, stainless steel
Bore B - without slide insert
Bore G - with slide insert
Product Description

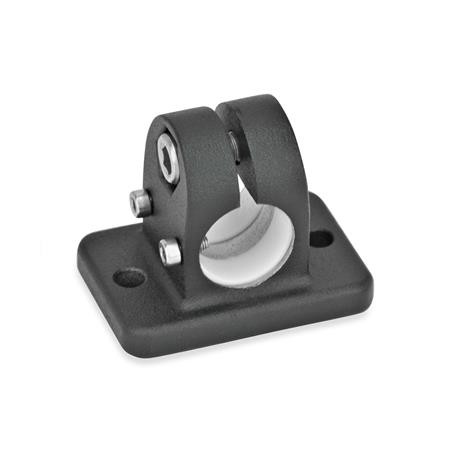

GN145.1 Flanged Linear Actuator Connector, Aluminium
These linear actuator connectors, GN 145.1, are normally supplied mounted in connection with a linear actuator and for function control.
By using the clamping screw on the guide bore d1 the movement can either be set or the linear actuator connector can be clamped (after setting of final adjustment).
The standard version of the clamping screw is a socket cap screw with hexagonal socket DIN 912. It can be replaced by a clamping kit GN911.
Specification
Aluminum - plastic coated, black, textured finish, SW
Guide bore - mechanically machined
Slide insert - plastic (PA / PTFE)
Socket cap screws DIN 912 - Stainless Steel AISI 304
Hexagon nuts DIN 985 - Stainless Steel AISI 304
Accessory
Clamping kit GN911
CAD Viewer
Technical Data
