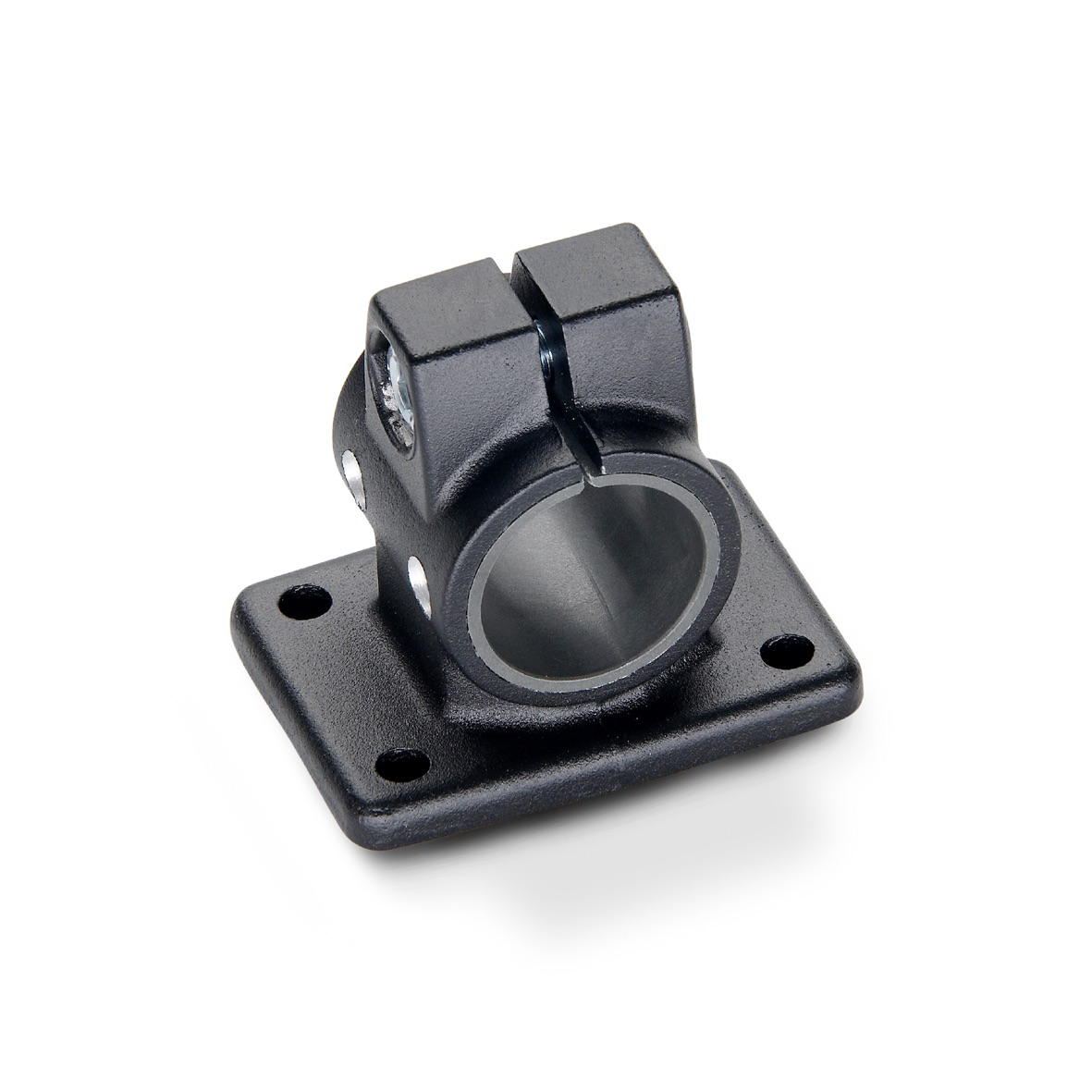

GN146.1 Flanged Linear Actuator Connector, Aluminium

CloseNextPrevious



CloseNextPrevious

GN146.1: Flanged Linear Actuator
Connector - Bore d1: B50



CloseNextPrevious

GN146.1: Flanged Linear Actuator
Connector - Bore d1: G50



CAD Viewer Technical Data

Series Selector

Options

Identification no. 2 - with clamping screw DIN912 stainless steel

Bore B - without slide insert

Bore G - with slide insert

CAD Viewer Technical Data

Product Description

GN146.1 Flanged Linear Actuator Connector, Aluminium

Linear actuator connectors GN 146.1 are normally used in connection with a mounted linear actuator and for function control.

By means of the clamping screw on the guide bore d1 the movement can either be set or the linear actuator connector can be clamped (after setting of final adjustment).

The standard clamping bolts are hexagonal socket cap screws DIN912. They can be replaced with adjustable clamping levers GN911

Specification

Aluminium, plastic coated, black, RAL 9005, textured finish SW

Guide bore - mechanically machined

Slide insert - Plastic (PA / PTFE)

Socket cap screws DIN912 - Stainless Steel, AISI 304

Hexagon nuts DIN985 - Stainless Steel, AISI 304

Accessory

Adjustable clamping lever GN911
