GN146.16 Flanged Linear Actuator Connectors, Stainless Steel, with 2 Mounting Holes

Choose your Part

Please select desired options to reveal part number, price and availability

Options

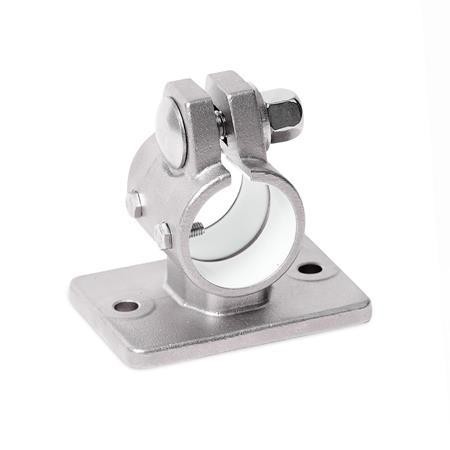

Type A - without seals

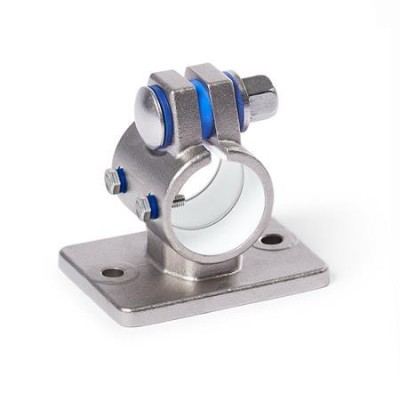

Type B - with seals

Identification number 4 - with cap nut DIN917, stainless steel

Product Description

GN146.16 Flanged Linear Actuator Connectors, Stainless Steel, with 2 Mounting Holes

Flanged linear actuator connectors GN 146.16 are based on flanged connector clamps. The additional mounting holes are used to connect to the drive key of a linear actuator. Bores G are equipped with sleeve bearings.

With the screw location z, the play of the guide bores d₁ can be adjusted or the linear actuator connectors can be clamped after adjustment. TypeB is equipped with seals at the screw locations.

For quick clamping without tools, the cap nut can be replaced by the adjustable hand levers GN911.3 listed in the table as accessories.

Specification

• Stainless steel AISI CF-8, matte shot blasted.
• Sleeve bearing - Plastic (PTFE)
• Carriage bolt DIN603 - stainless steel
• Cap nuts DIN917 / Washers - stainless steel
• Seals
  • Sealing disks - Plastic (Polycetal POM)
  • Spacer ring - Silicon, 40-60 Shore A
