GN146.13 Flanged Linear Actuator Connectors, Aluminium, with 2 Mounting Holes

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Identification number 2 - with socket cap screw DIN912, stainless steel

Product Description

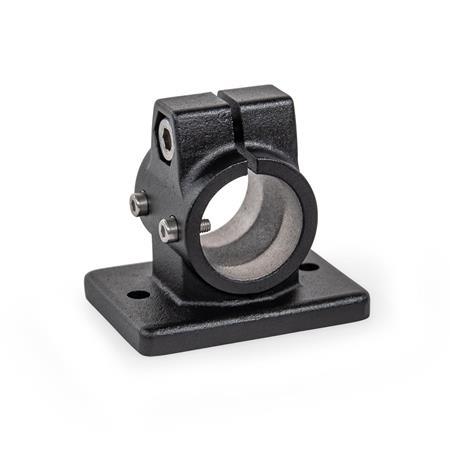

GN146.13 Flanged Linear Actuator Connectors, Aluminium, with 2 Mounting Holes

Flanged linear actuator connectors GN 146.13 are based on flanged connector clamps. The additionally provided mounting holes are used to connect to the drive key of a linear actuator. Bores with the designation G have sleeve bearings.

With the screw location z, the play of the guide bores d₁ can be adjusted or the linear actuator connectors can be clamped after adjustment.

For quick clamping without tools, the socket cap screw can be replaced by the adjustable hand levers GN911 listed in the table as accessories.

Specification

• Aluminium. Plastic coated, black, RAL 9005, textured finish SW.
• Sleeve bearing - Plastic (PTFE)
• Socket cap screws DIN912 - stainless steel, AISI 304
• Hexagon nuts DIN985 - stainless steel, AISI 304, self locking via polyamide ring.
