GN148.3 Vibration Damping Elements, Rubber, Flange Steel / Stainless Steel
Choose your Part
Please select desired options to reveal part number, price and availability
Options

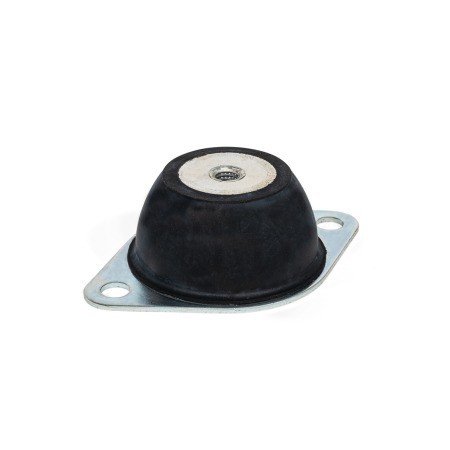

Type A - with two hole flange

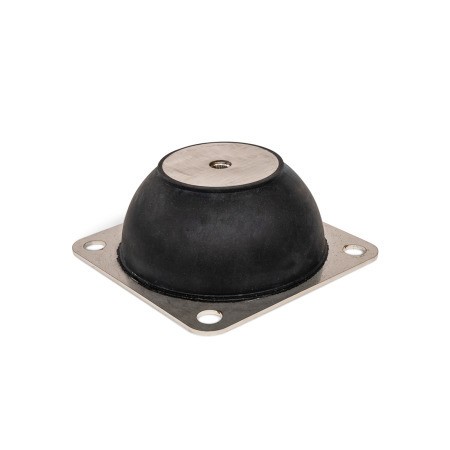

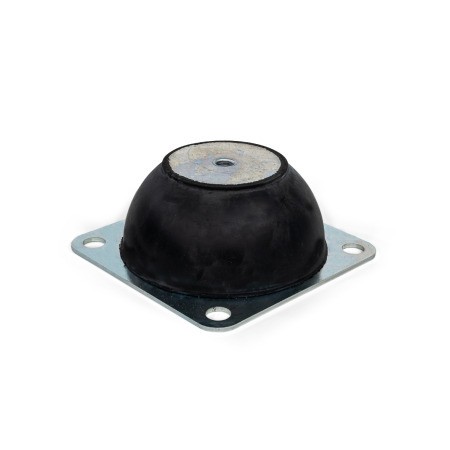

Type B - with four hole flange
Product Description
GN148.3 Vibration Damping Elements, Rubber, Flange Steel / Stainless Steel
Vibration damping elements GN 148.3 absorb low-frequency vibrations to protect the environment of a machine from vibrations and noise. Due to their long spring travel, they also dissipate harmful impact energy very effectively.
Specification
- Vibration damping element - Natural rubber (NR). Vulcanised, black, operating temperature -40 degrees C to +80 degrees C.
- Hardness Shore A ±5
- Contact plate / Threaded insert
- Steel, zinc plated, blue passivated. S
- Stainless steel N - only in medium hardness, 60
CAD Viewer
Technical Data
