GN1581 Hygienic Design Stainless Steel Screw, Low-Profile Head

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Finish MT - matt (Ra < 0.8 m)

Finish PL - polished (Ra < 0.8 m)

Sealing Ring H - Hydrogenated acrylonitrile butadiene rubber

Sealing Ring E - Ethylene propylene diene rubber

Product Description

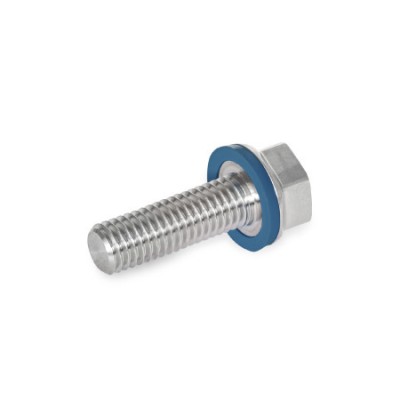

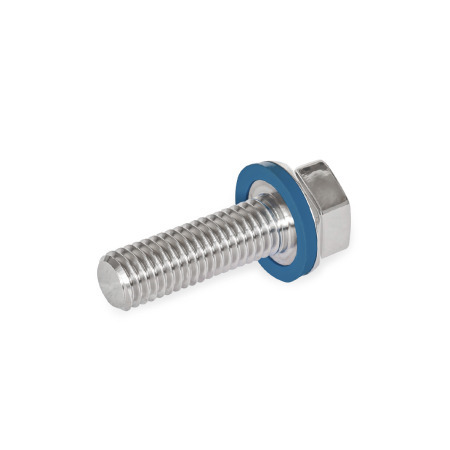

GN1581 Hygienic Design Stainless Steel Screw, Low-Profile Head

Stainless steel screws GN 1581 with low-profile head are certified according to EHEDG guidelines and therefore ideal for use in hygienic areas. The sealed mounting surface enables components to be mounted without dead spaces. The high quality finish as well as the large corner radii and closed surfaces prevent adherence of dirt and facilitate cleaning.

Specification

• Stainless Steel - AISI 316 L (A4), matte (Ra < 0.8 m) MT, polished (Ra < 0.8 m) PL
  • Sealing ring, Blue, Hardness 85 ±5 Shore A, FDA Compliant
    • H-NBR H, temperature resistant -25 C to +150 C
    • EPDM E, temperature resistant -40 C to +120 C
    • FKM F, temperature resistant -5 C to +200 C

Accessory

Sealing rings GN7600
