GN17 Levelling Feet, Stainless Steel AISI 304, FDA compliant

Choose your Part

Please select desired options to reveal part number, price and availability

Options

Type

Type C3 - Polished, rubber vulcanized, black

Version

Version S - Without nut, external hex at the bottom

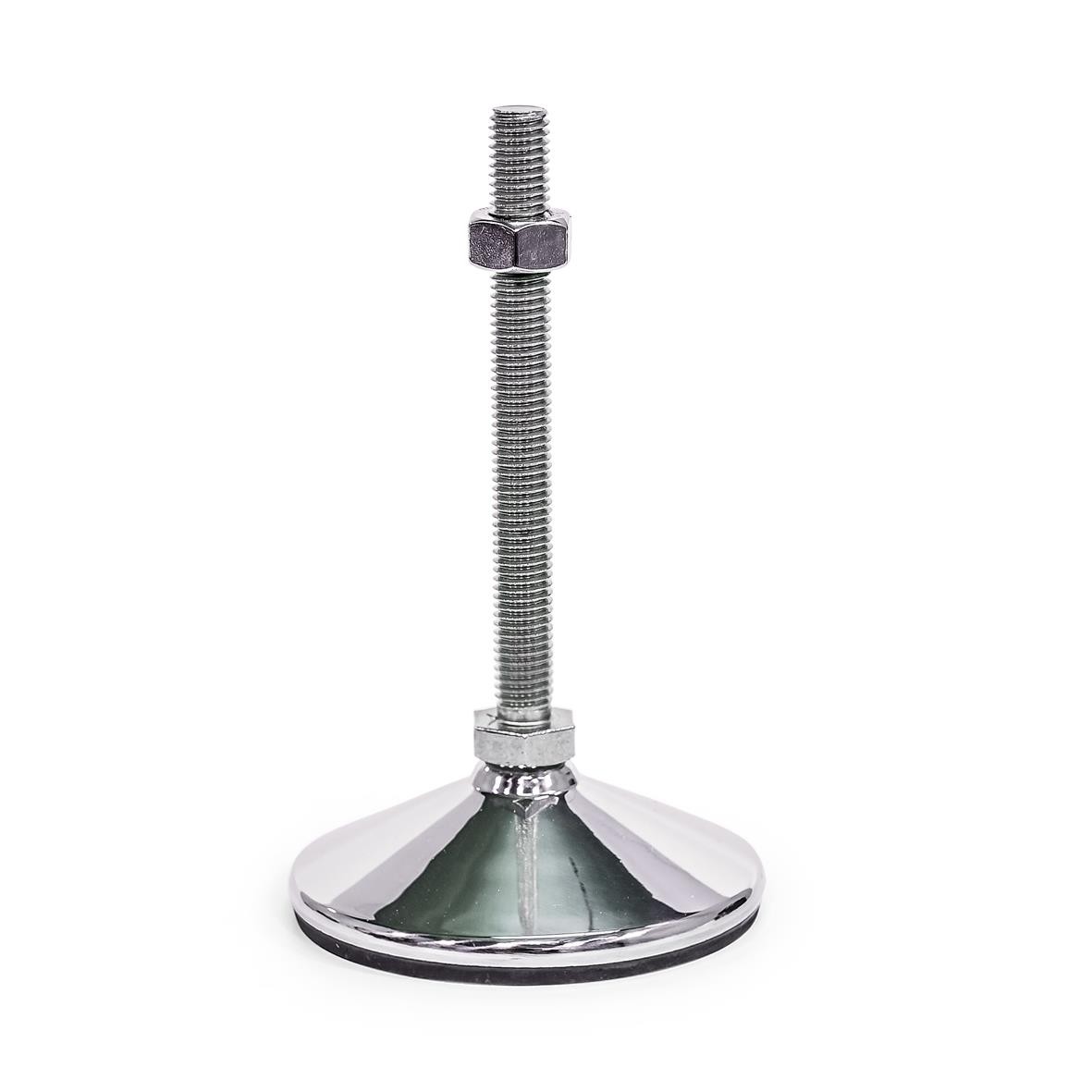

Version SK - With nut, extrenal hex at the bottom

Version T - Without nut, wrench flat at the bottom

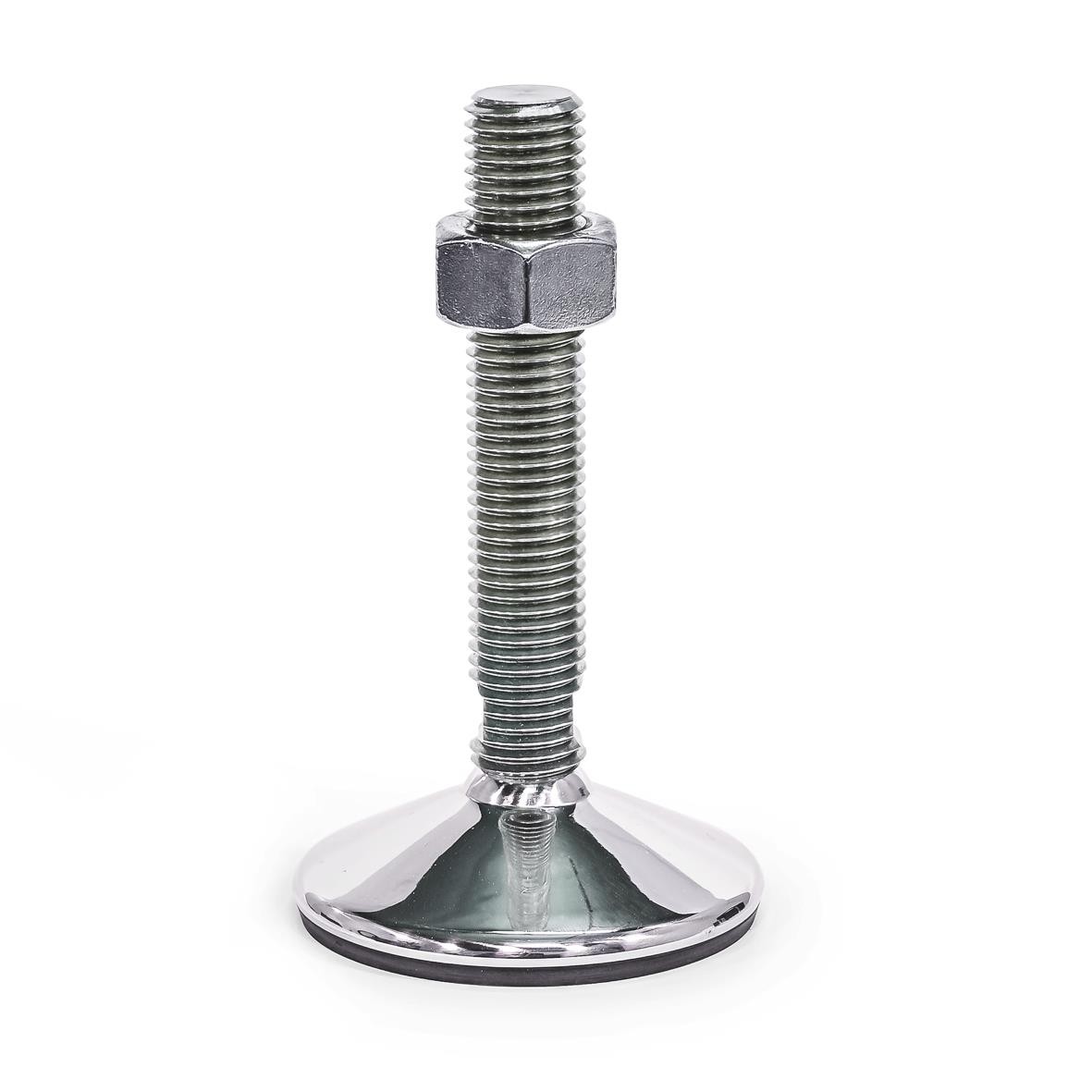

Version TK - With nut, wrench flat at the bottom

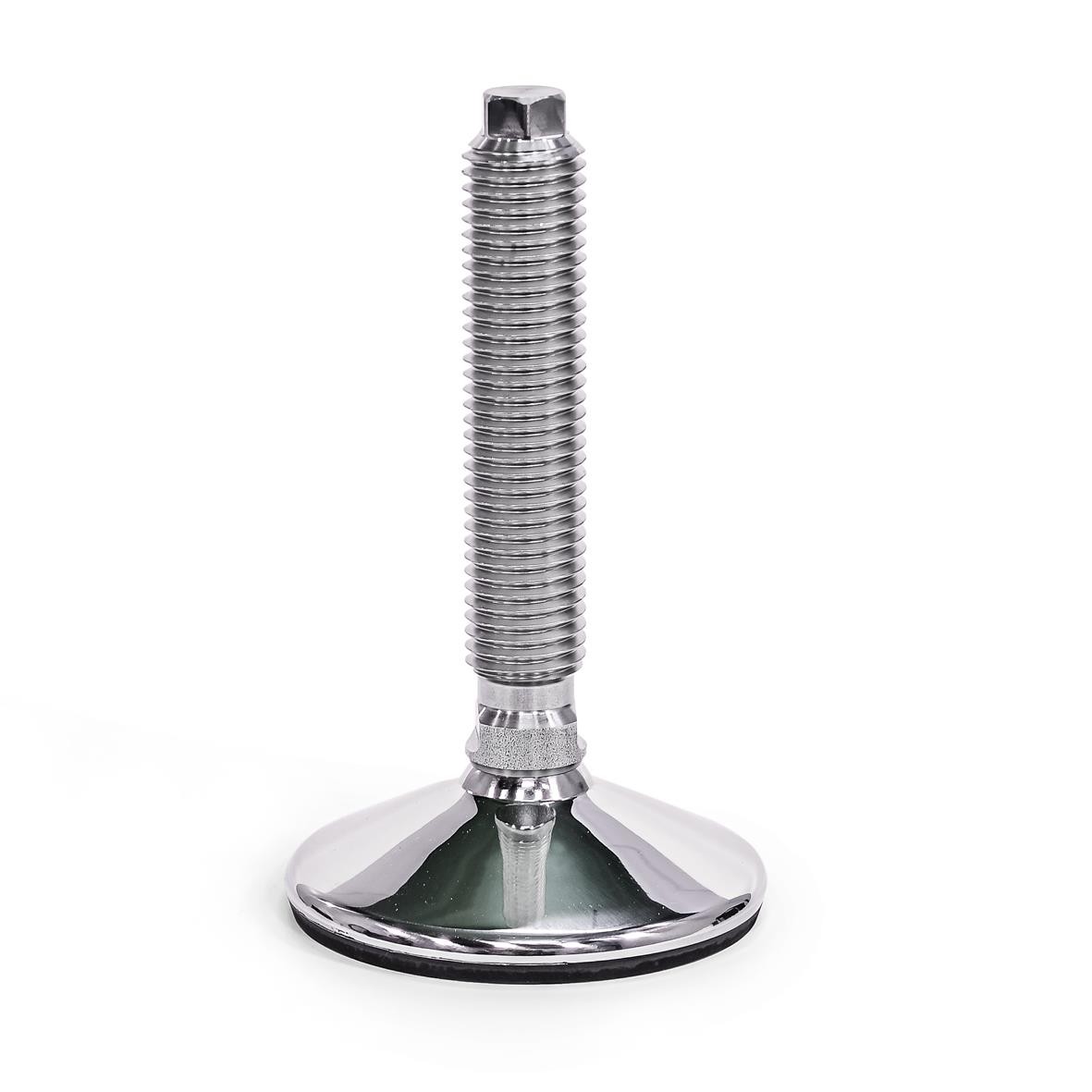

Version V - Without nut, external hex at the top and wrench flat at the bottom

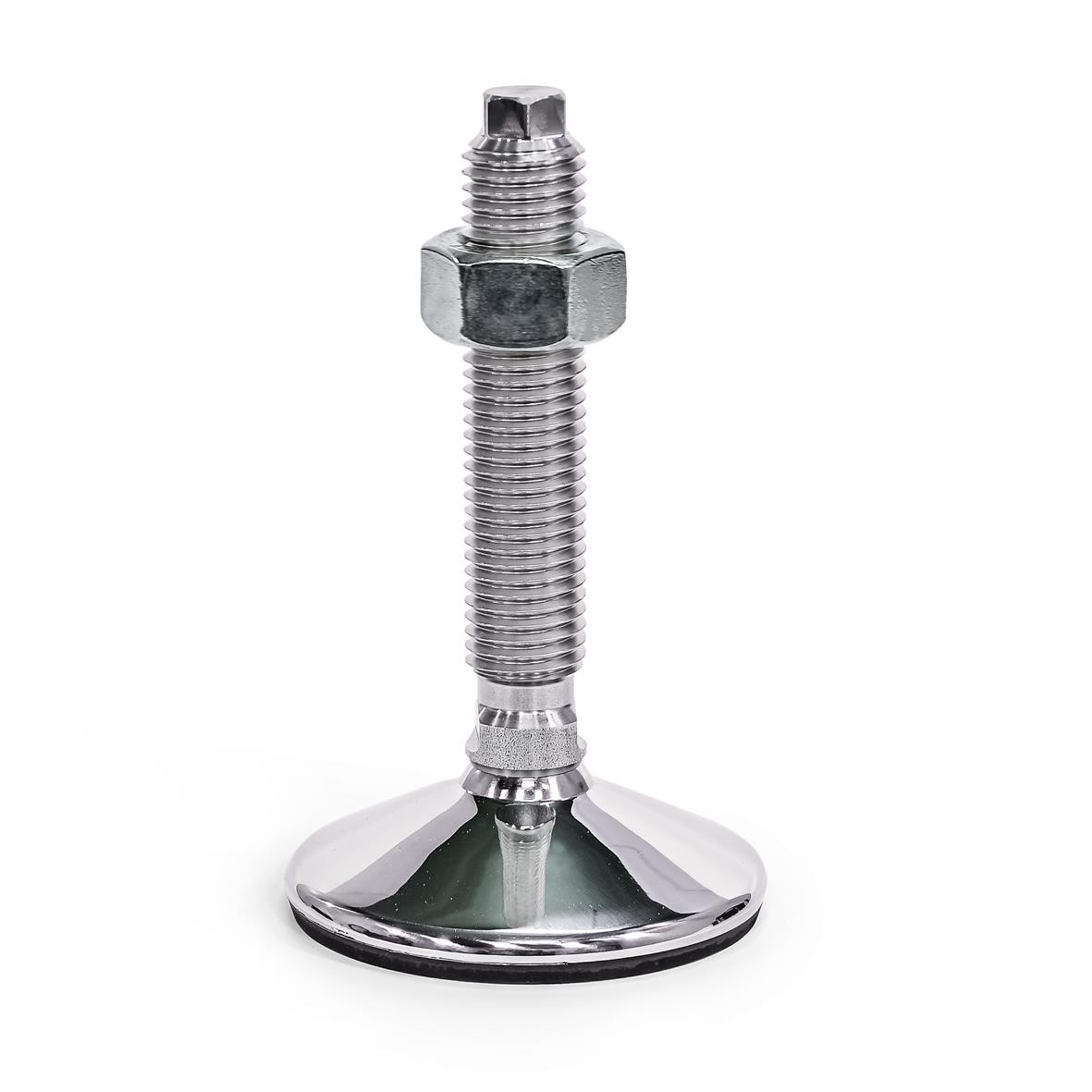

Varsion VK - With nut, external hex at the top and wrench flat at the bottom

Version W - With adjustable sleeve, covered thread and wrench flat at the bottom

Product Description

GN17 Levelling Feet, Stainless Steel AISI 304, FDA compliant

Levelling feet, GN17, are suitable for use in aggressive environments.

The inclined surfaces for liquid runoff and the high surface quality of the base plate simplify cleaning and prevent the accumulation of dust or dirt. The FDA compliant and vulcanized rubber underlay seals the base against the resting surface and allows the feet to be used in food processing areas or the pharmaceutical industry, for example.

The levelling feet are supplied assembled and cannot be taken apart.

Specification

• Base plate - Stainless steel, AISI 304
• Threaded stud - Stainless steel, AISI 303
• Hex nut ISO 4032 - Stainless steel
• Rubber pad - FDA compliant rubber, black, hardness 85±5 Shore A, vulcanized
