GN189 Serrated Locking Plates, Plastic

Choose your Part

Please select desired options to reveal part number, price and availability

Options

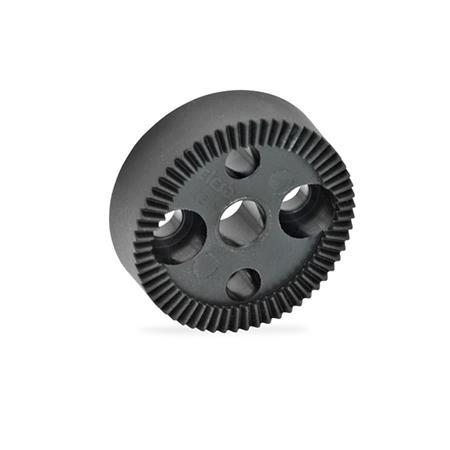

Type B - With drilling d₃ in the centre, with two countersunk holes for cap screws

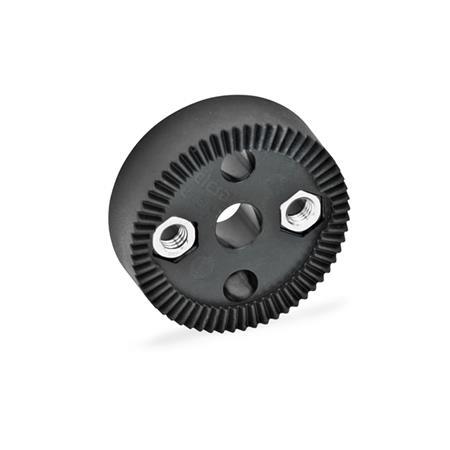

Type BC - With drilling d₃ in the centre, with two hexagon nuts for screwing

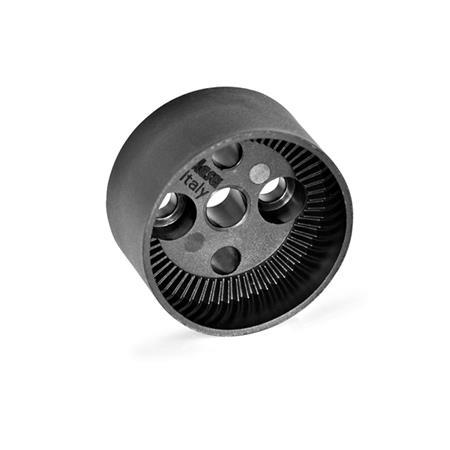

Type D - With drilling d₃ in the centre, with two countersunk holes for cap screws, with a guide

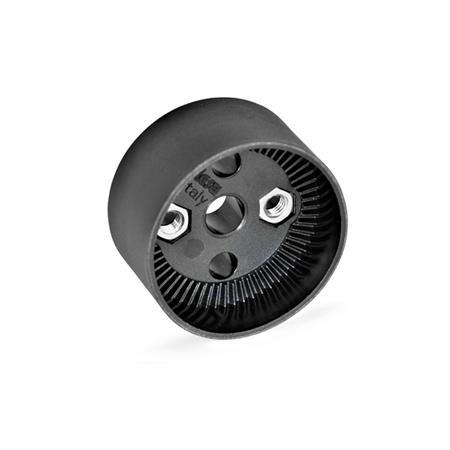

Type DC - With drilling d₃ in the centre, with two hexagon nuts for screwing, with a guide

Product Information

GN189 Serrated Locking Plates, Plastic

With the aid of serrated locking plates GN 189, standard components can be connected together at a defined angle with a positive connection.

The tooth count of 60 enables the adjustment in 6° steps, resulting in the indexing positions listed in the separate table.

The range of designs makes these plates adaptable for almost any application in this particular field. Thrust springs GN187.2 can be placed between the locking plates during installation, allowing a clean separation upon removal.

Specification

• Plastic - Technopolymer (Polyamide PA-HP), glass fibre reinforced, temperature resistant up to 80ºC, black, matte finish
• Hex nuts (Type D/DC) - stainless steel AISI 304
