GN200 Indexing Mechanism, Stainless Steel

CloseNextPrevious
CloseNextPrevious
CloseNextPrevious
CAD Viewer Technical Data

Series Selector

Options

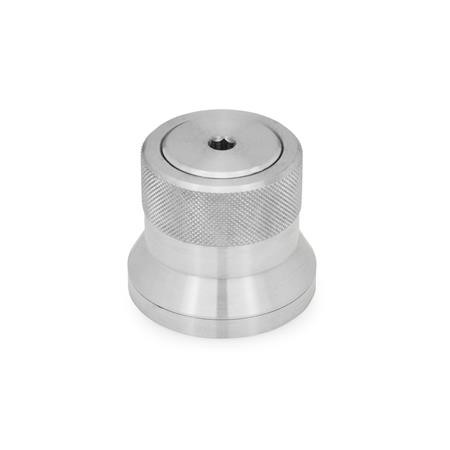

Type A - Without scale

Type AS - With scale 0 - 50, 60 graduations

CAD Viewer Technical Data

Product Description

GN200 Indexing Mechanism, Stainless Steel.

These stainless steel indexing mechanisms replace and simplify complicated indexing and safety mechanisms.As they are made from stainless steel, they are ideal for use in cleanroom environments, such as in the food and medical industries, and for packaging and processing.

They can be supplied blank or with standard scale or customised with graduated markings, of various designs.

Please note: An additional surcharge applies for custom graduation. If this is not chosen on the original order, this will be invoiced separately.

Specification

Stainless Steel NI, AISI 303

Type AS - scale engraved with laser precision, black, reference line on location ring.

On Request

Custom Graduations
