GN200 Indexing Mechanism, blank & standard scale





Type A - With knob, blackened, without scale.

Type AS - With knob, matt chrome plated, with standard scale 0 - 50, 60 graduations.

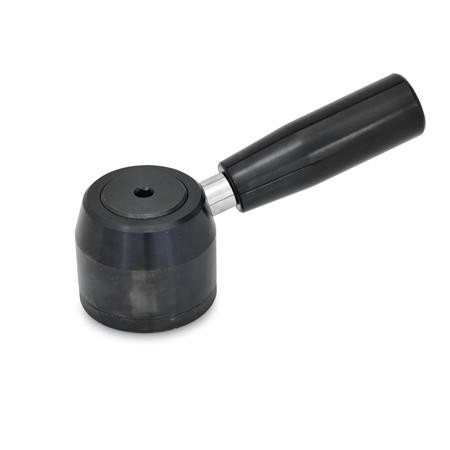

Type B - With one tension lever.

Type C - With two tension levers.



CloseNextPrevious
CAD Viewer Technical Data

Series Selector

CAD Viewer Technical Data

Product Description

GN200 Indexing mechanism.

These indexing mechanisms, GN 200, replace and simplify complicated indexing and safety mechanisms.

They can be supplied blank or with standard scale.

Should a different graduation be required to the standard scale, please see Indexing Mechanisms, custom. which are available for customisation.

Specification

Steel - blackened.

Type AS - control knob matt chrome plated, scale engraved with laser precision, black, reference line on location ring.

Keyway P9 DIN 6885/1 for bore K 10, Keyway P9 DIN 6885/2 for bores > K 10

Accessory

GN539 Fixed cylindrical handles (Plastic, Technopolymer black, shiny finish).
